SPECIFICATIONS
Wheelbase: Screws
Brand Name: YFGRGT
Model Number: 1/10 Carbon LCG Chassis
Size: 1/10
Quantity: 1 pcs
Use: Vehicles & Remote Control Toys
Material: Composite Material
Hign-concerned Chemical: none
Tool Supplies: Assembled class
For Vehicle Type: Cars
RC Parts & Accs: LCG Chassis
Origin: Mainland China
Technical parameters: value 2
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
Upgrade Parts/Accessories: RC Crawler Chassis Kit
Remote Control Peripherals/Devices: LCG Chassis Kit
Recommend Age: 14+y
Choice: yes
semi_Choice: yes
About This Item:

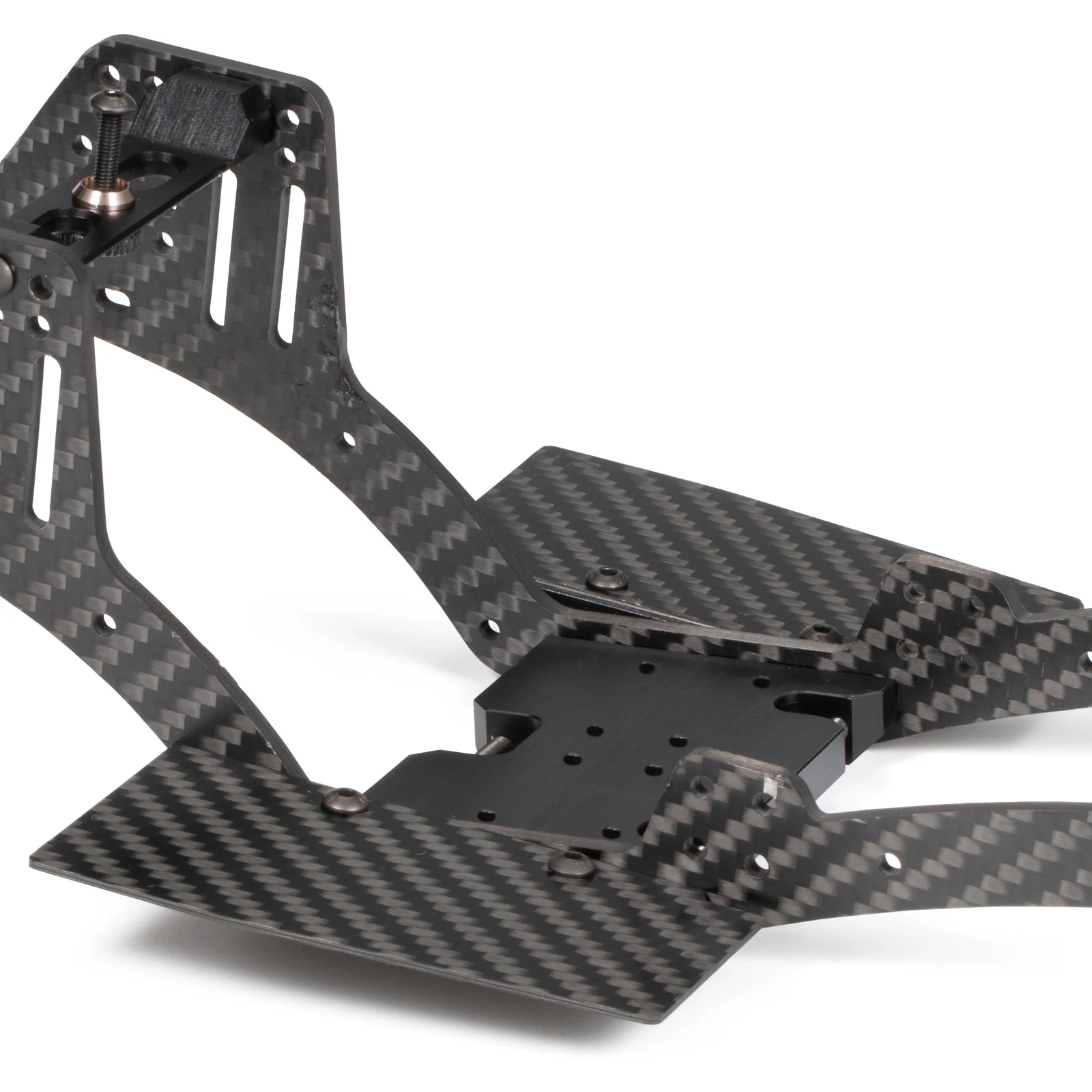

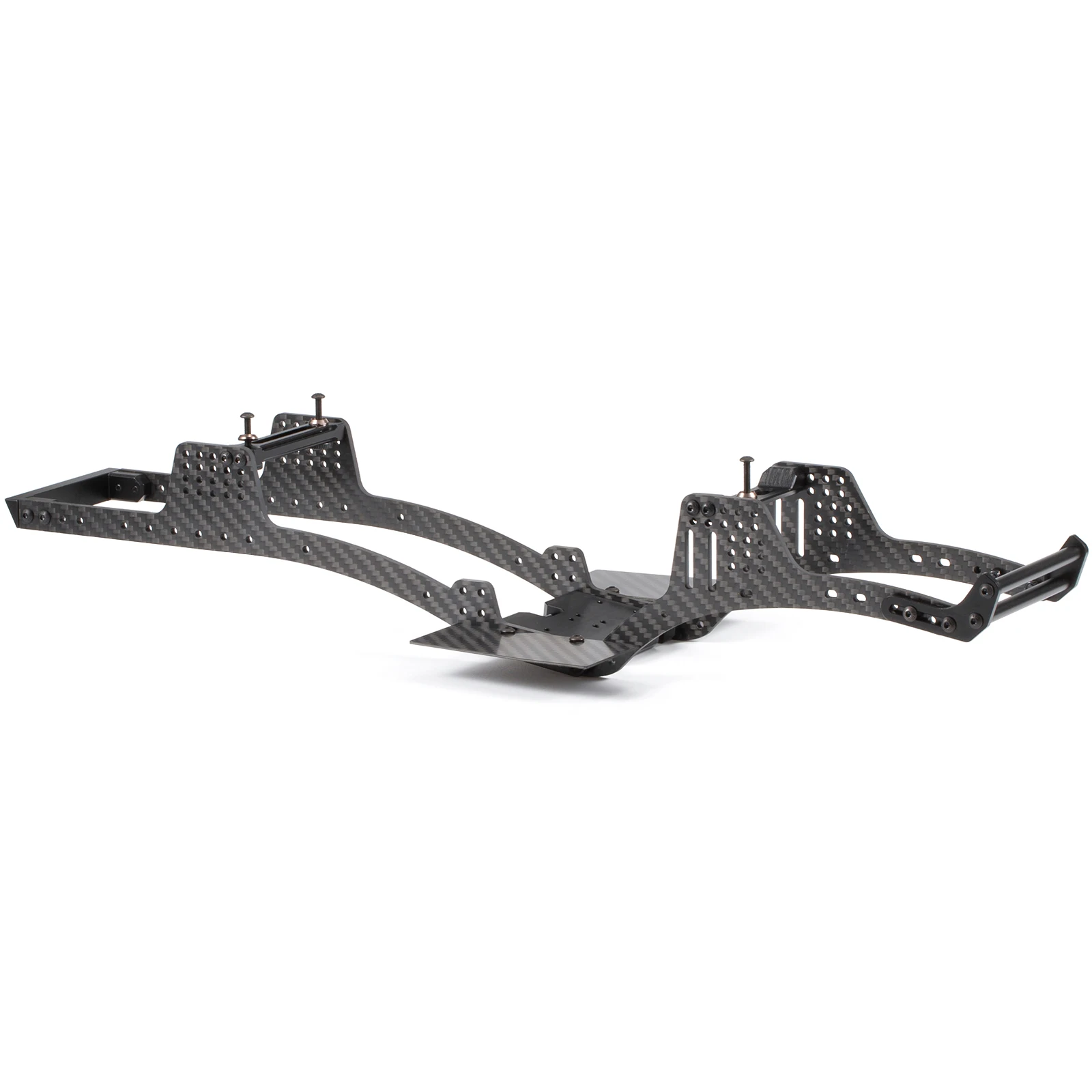

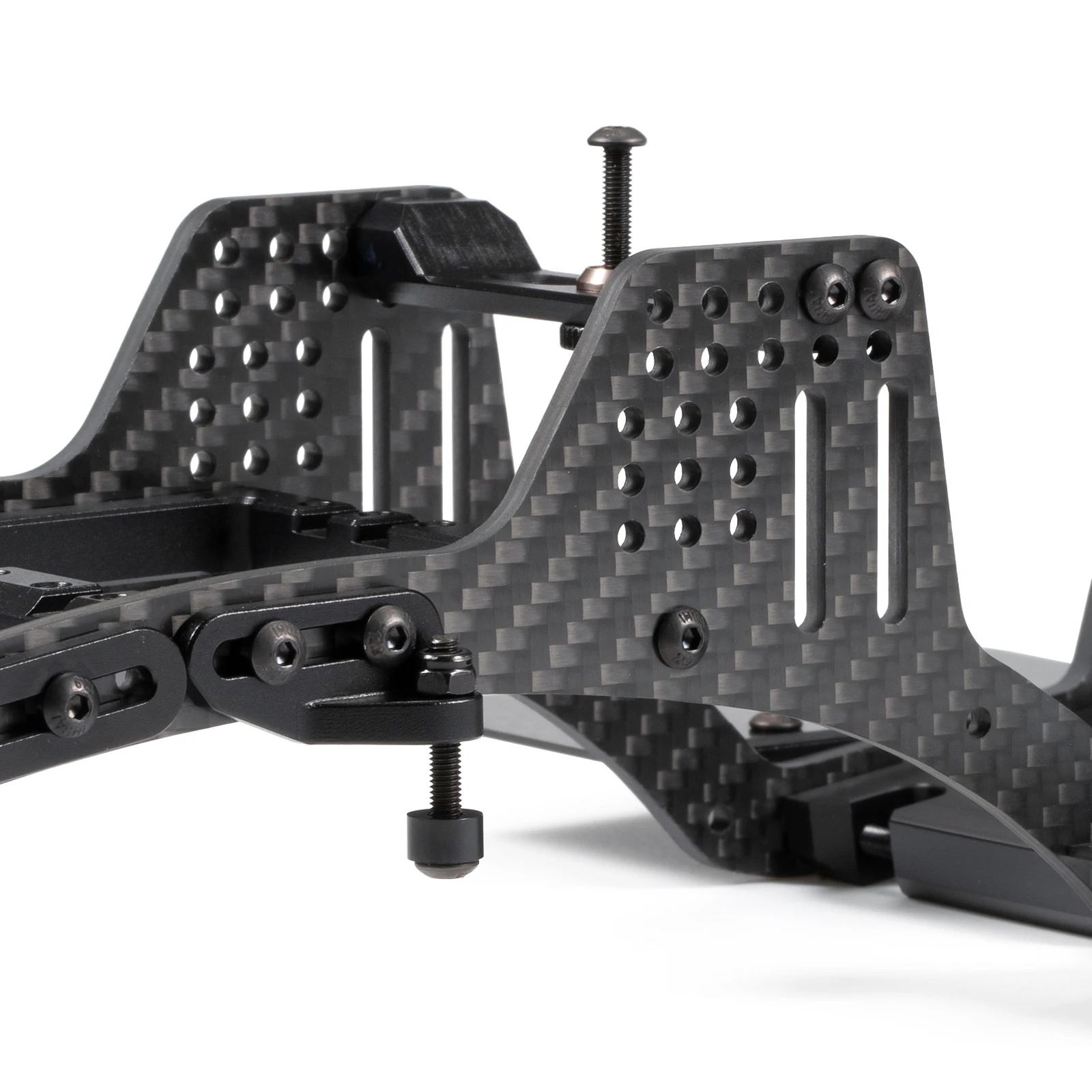

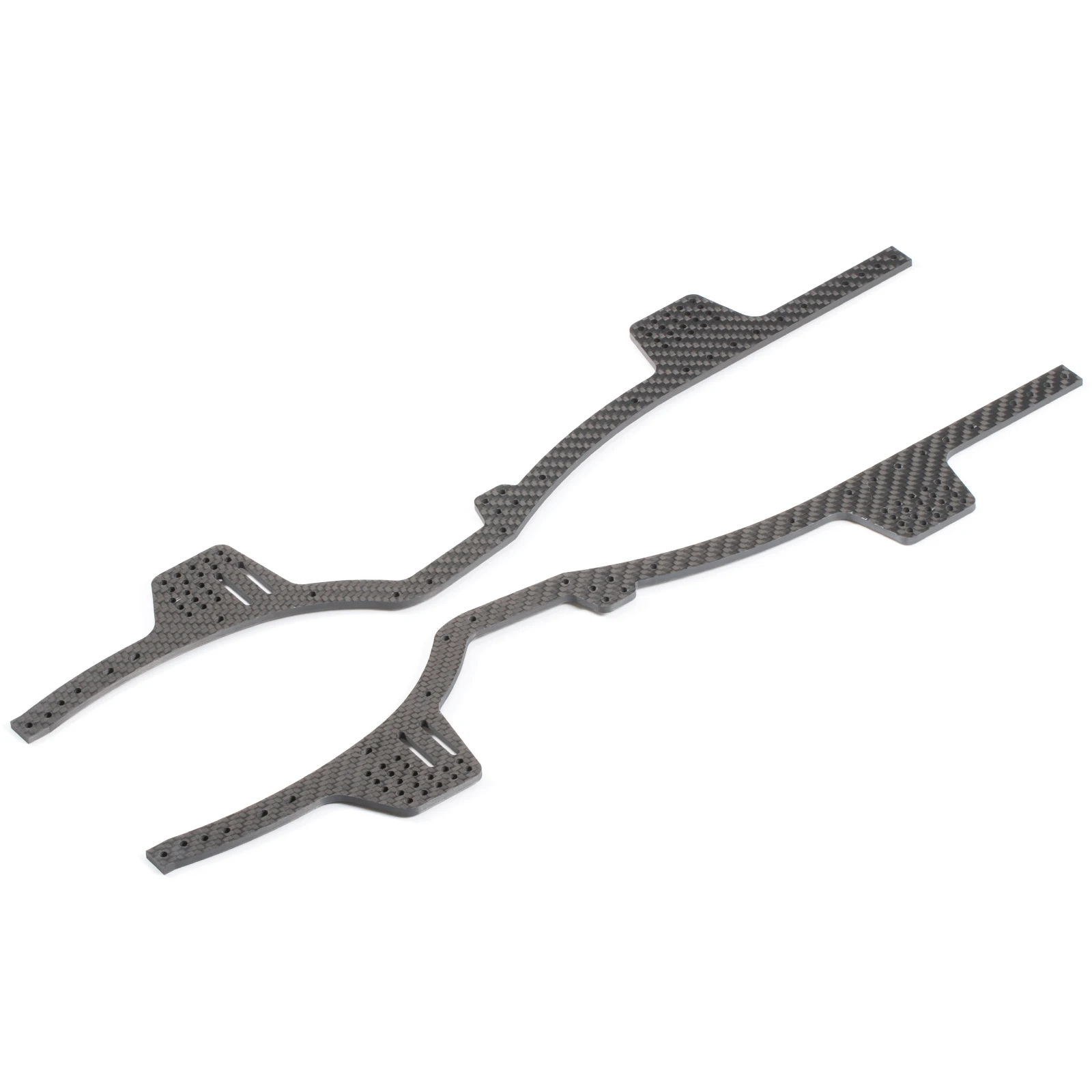

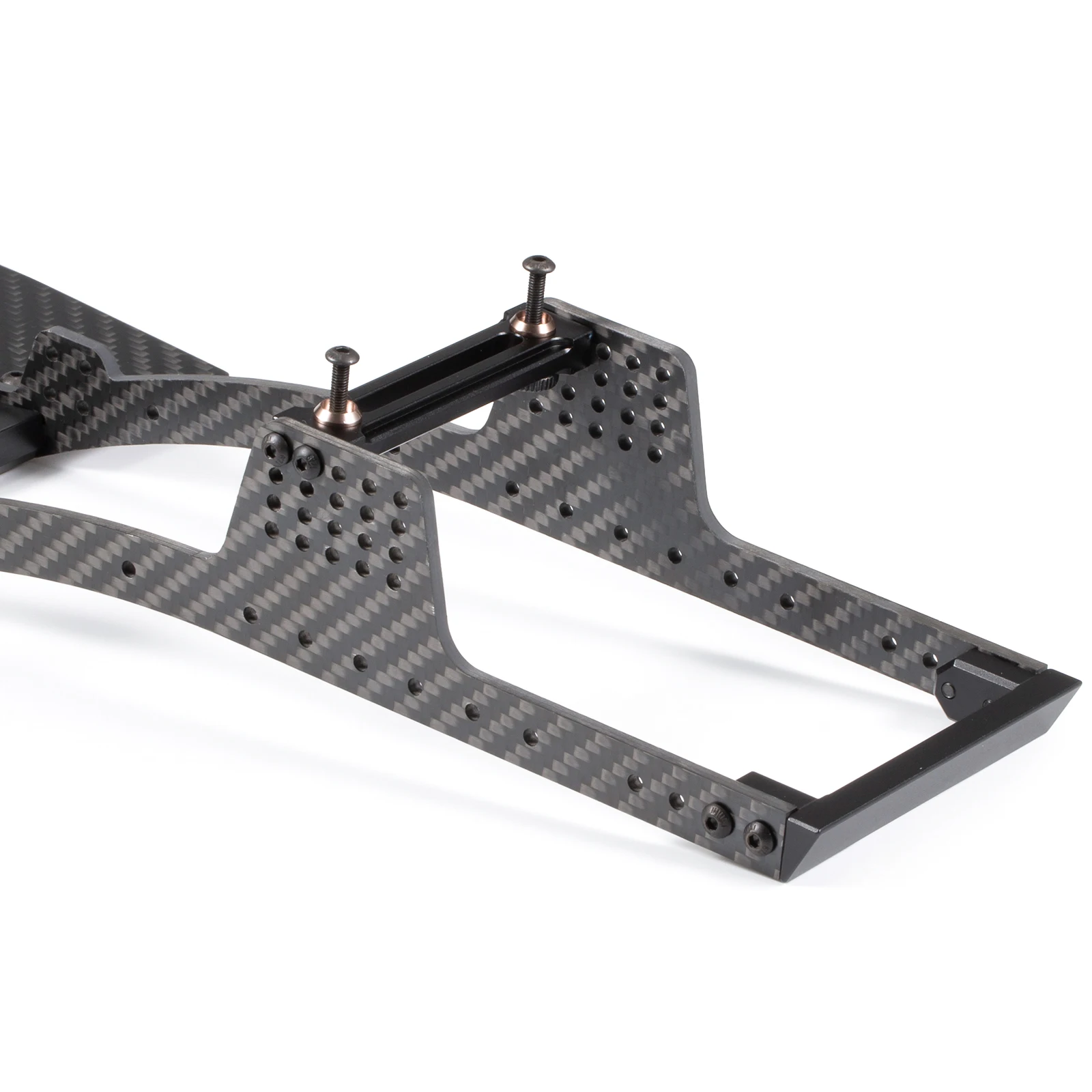

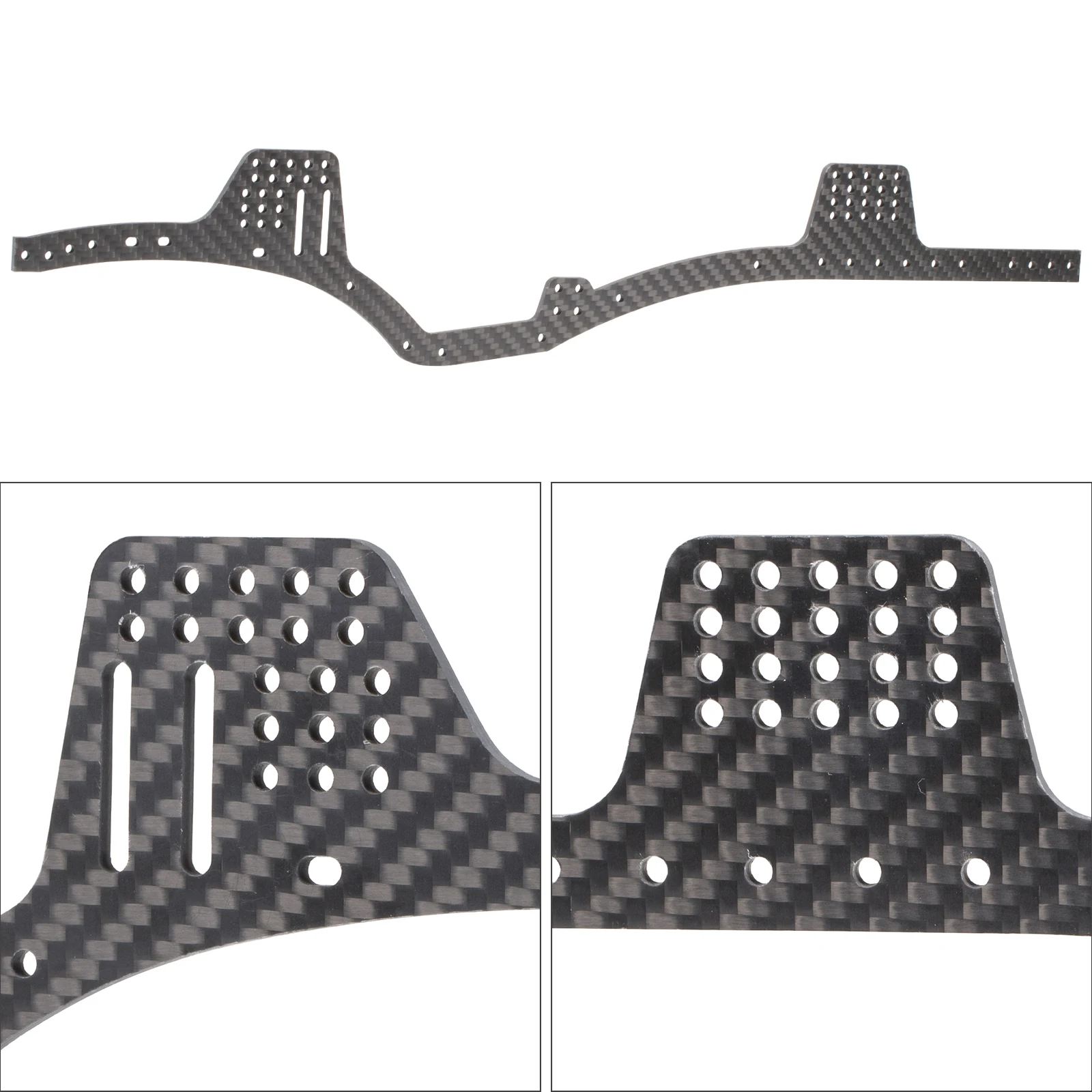

• Frame rails laser cut from 3mm carbon fiber.
• Extremely strong and extremely light. 2.4oz / 68 grams (pair).

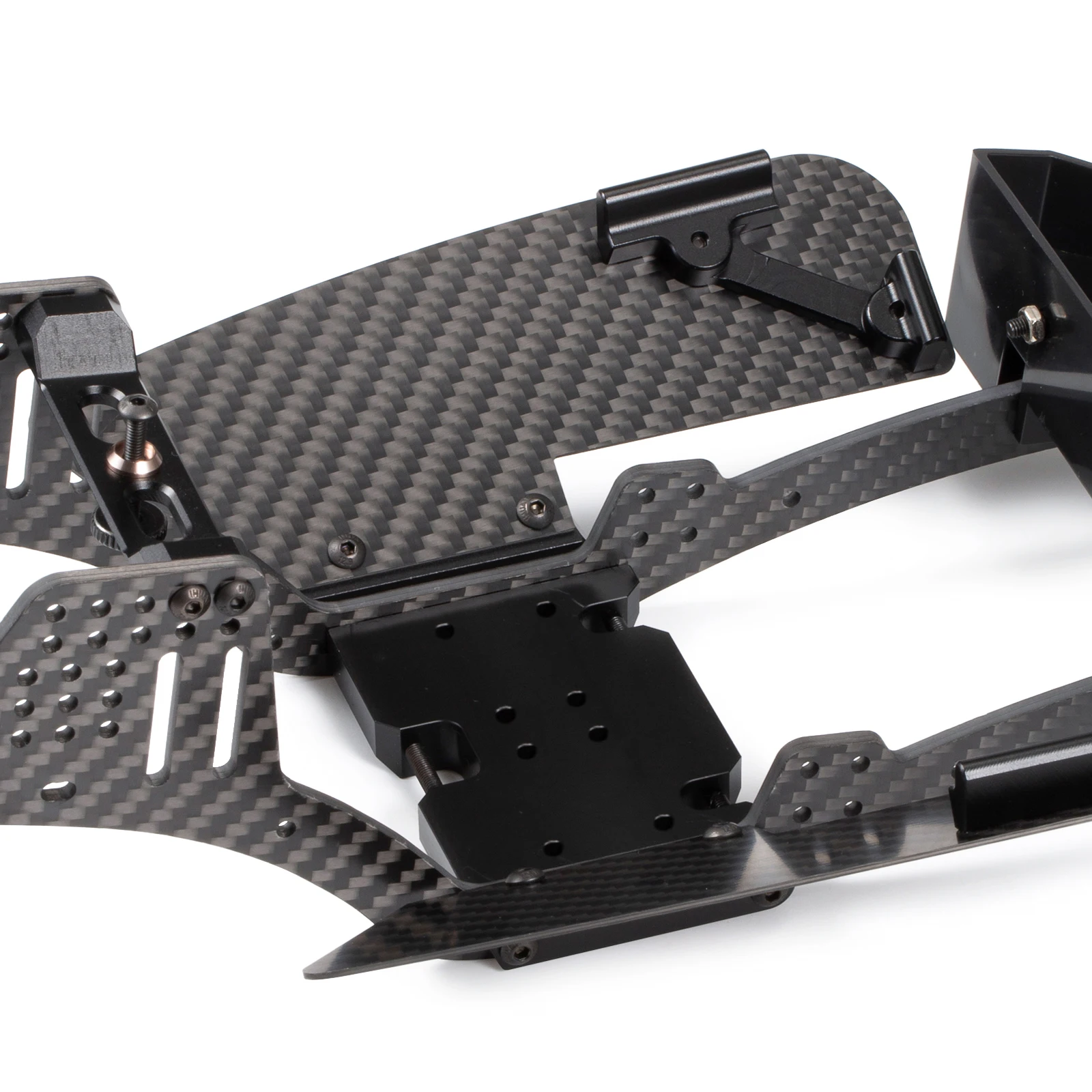

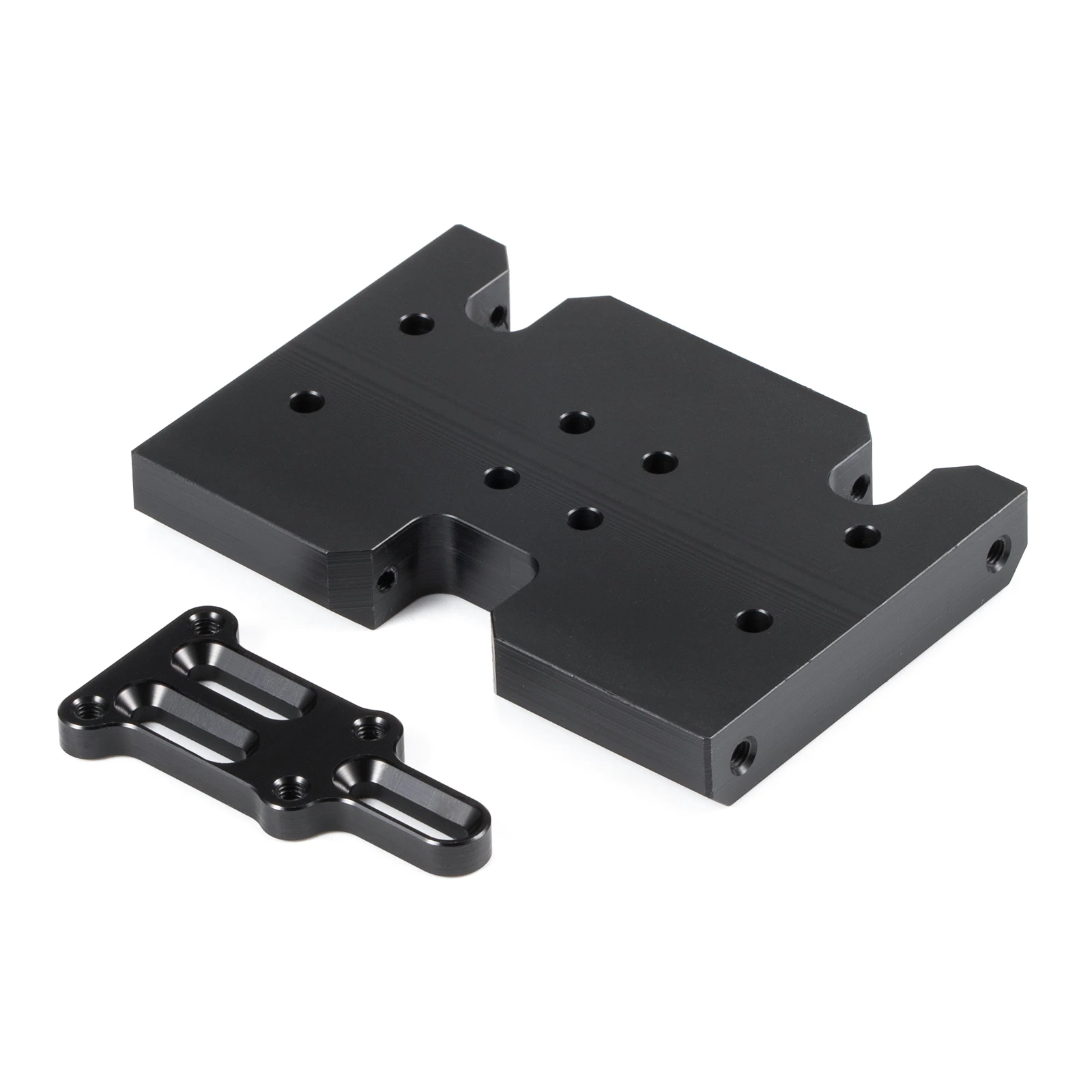

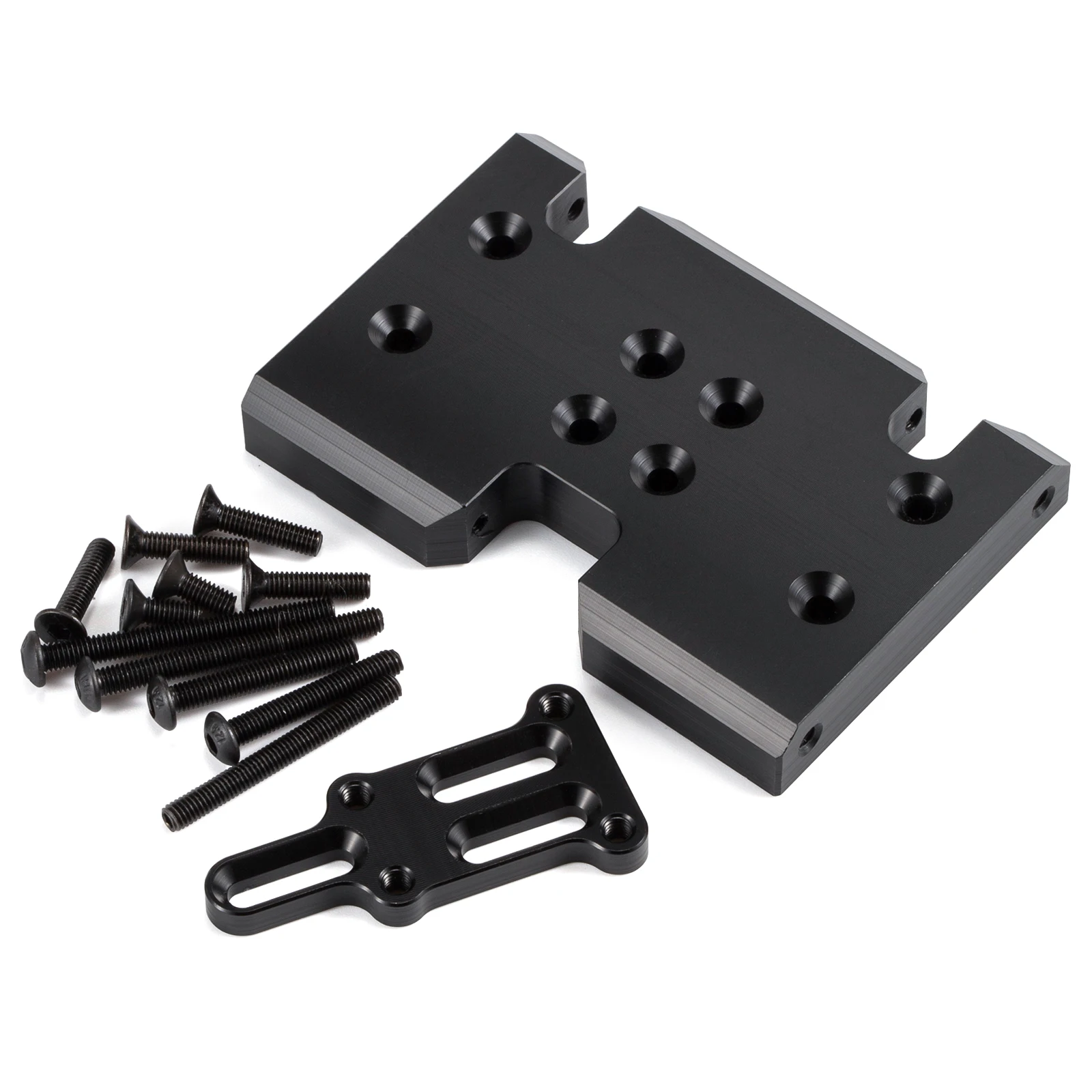

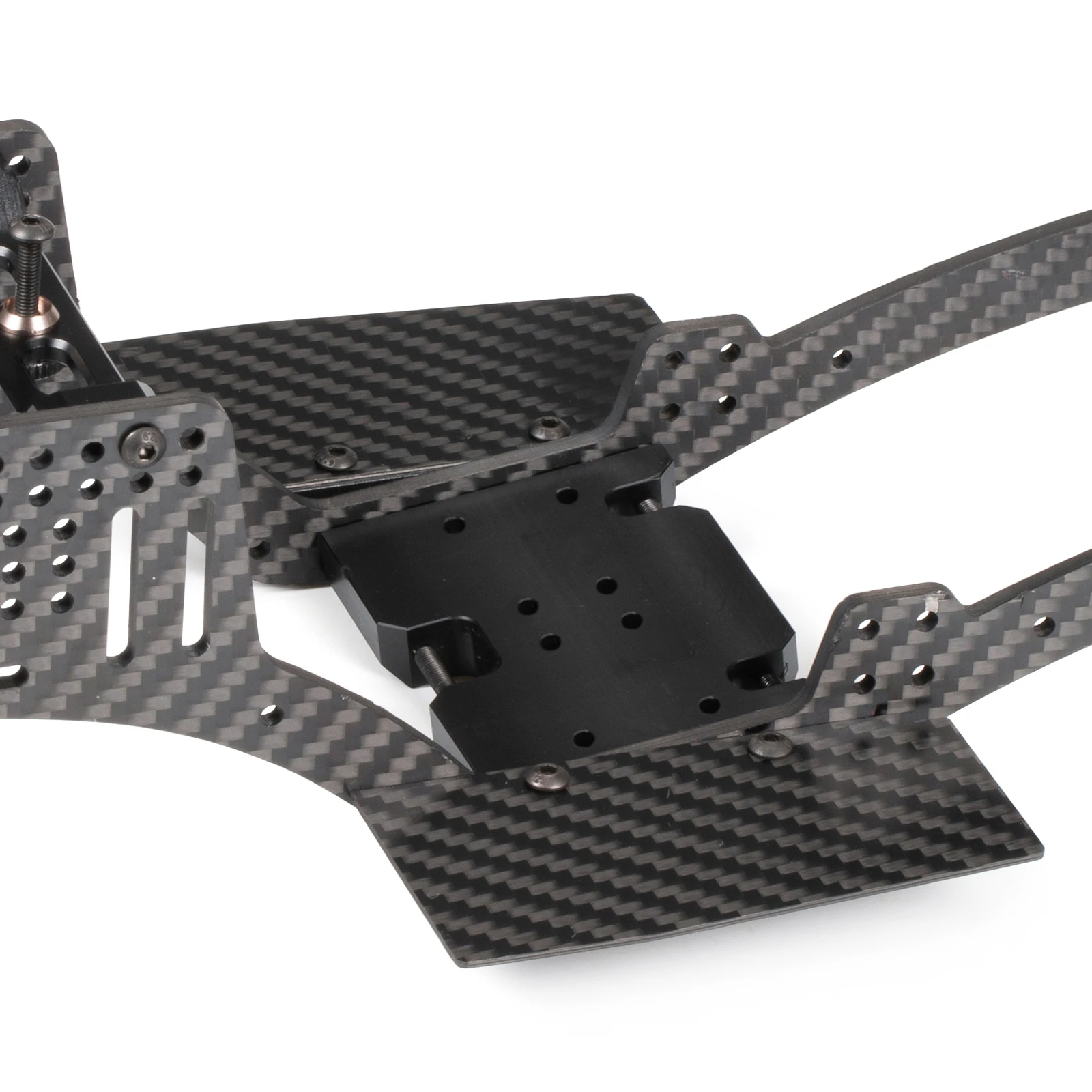

• 8 degree angled forward delrin skid plate, super slippery for sliding over rocks and debris.
• Transmission mounting holes for the 2low, axial 3 gear type, Element.

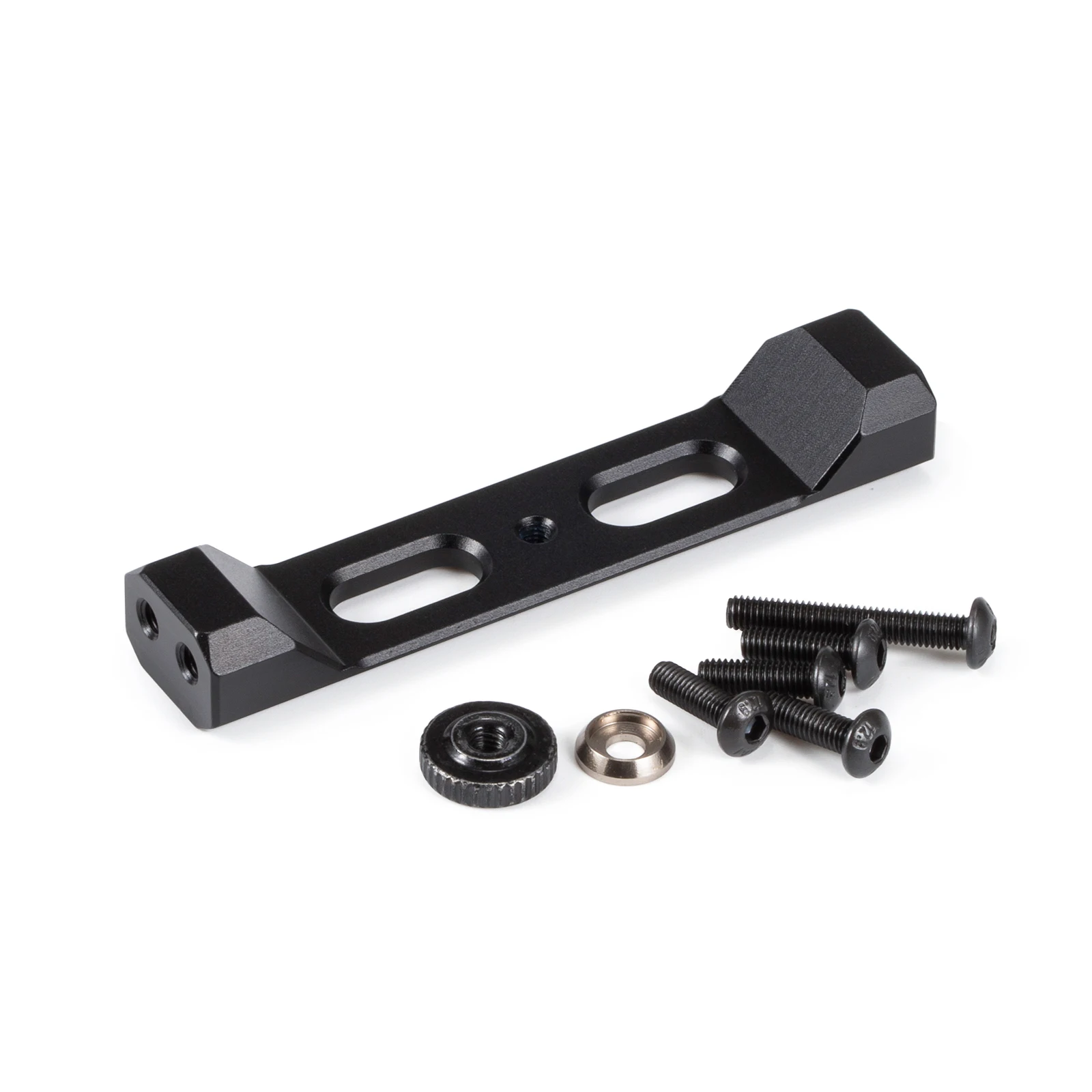

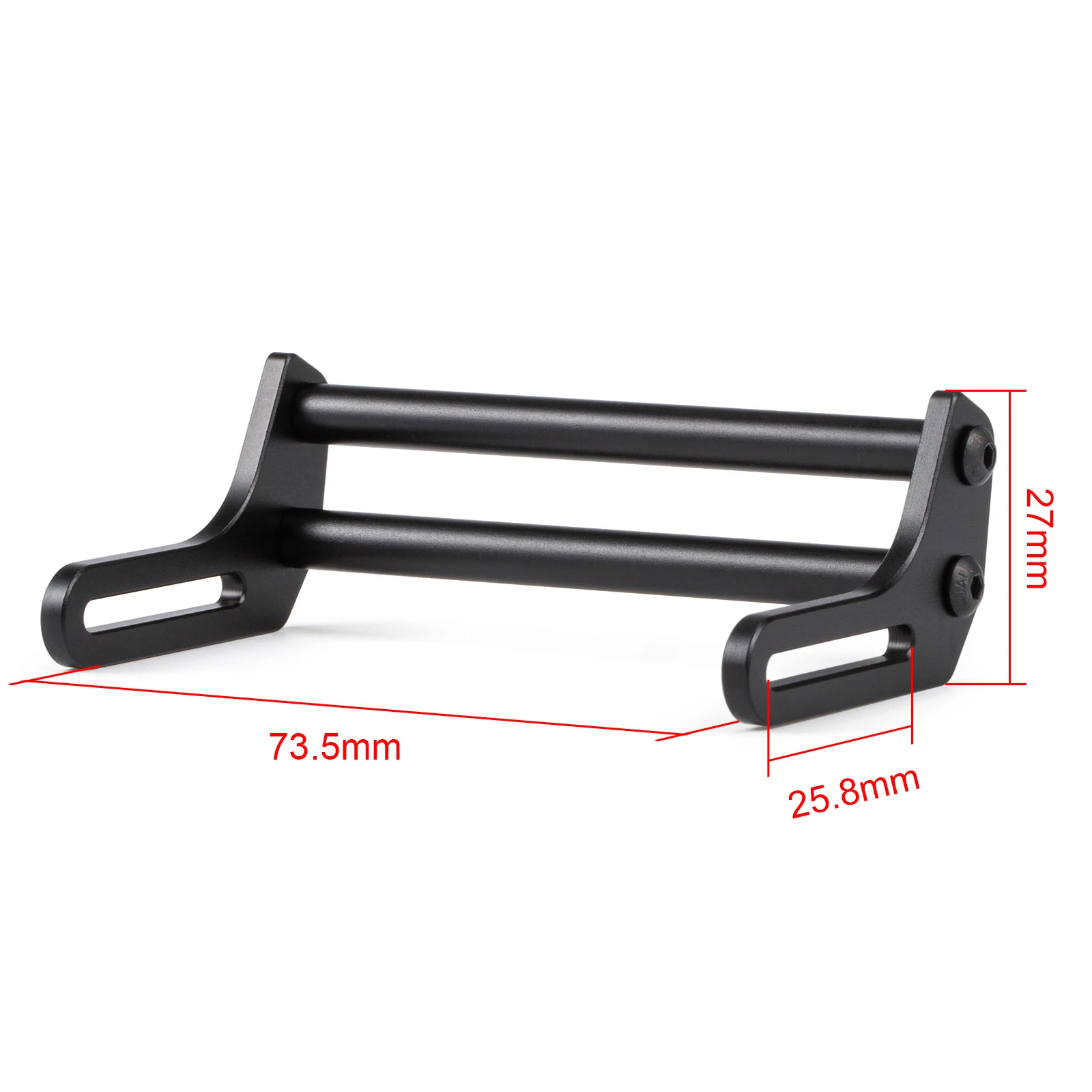

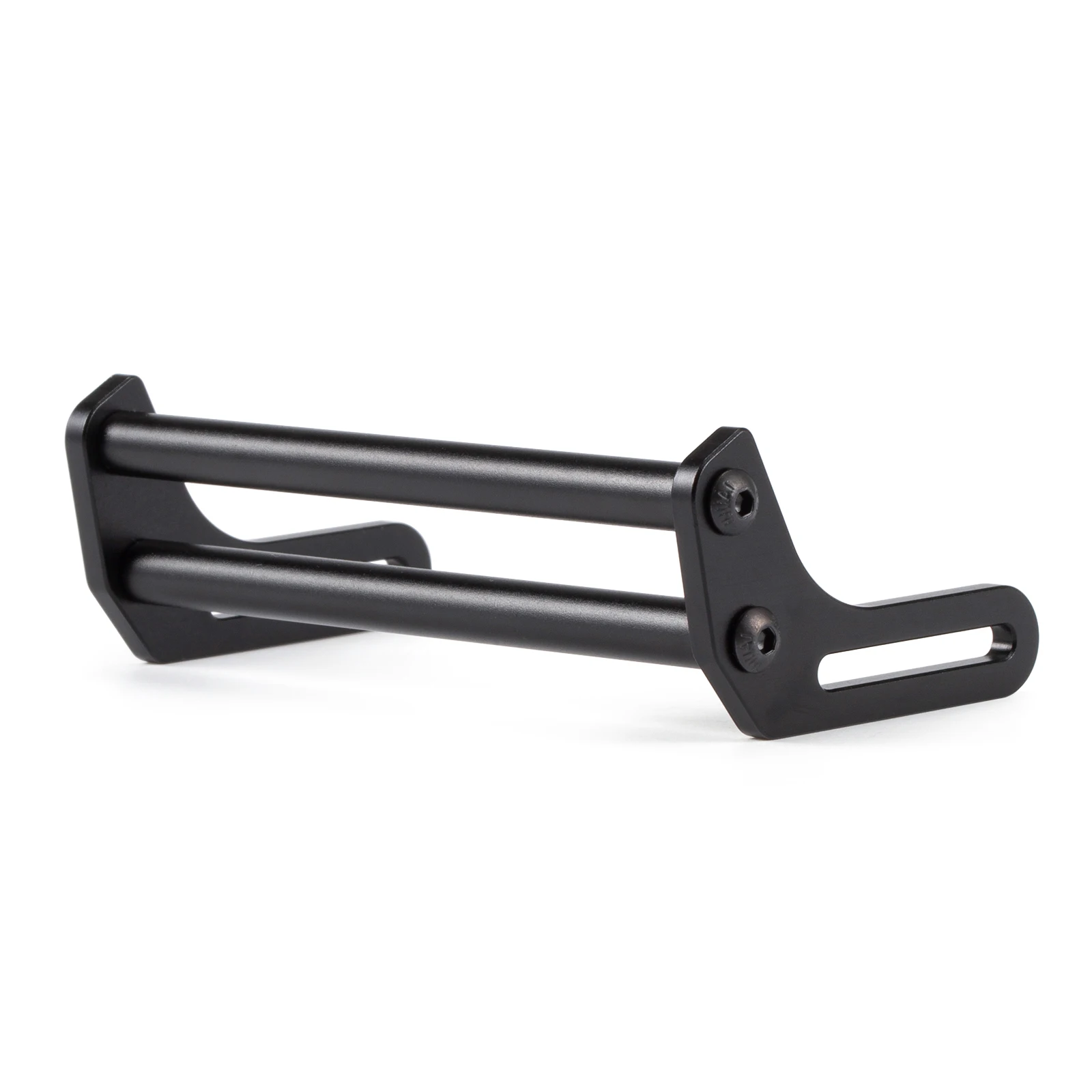

• CNC machined aluminum bumper, new angled design.

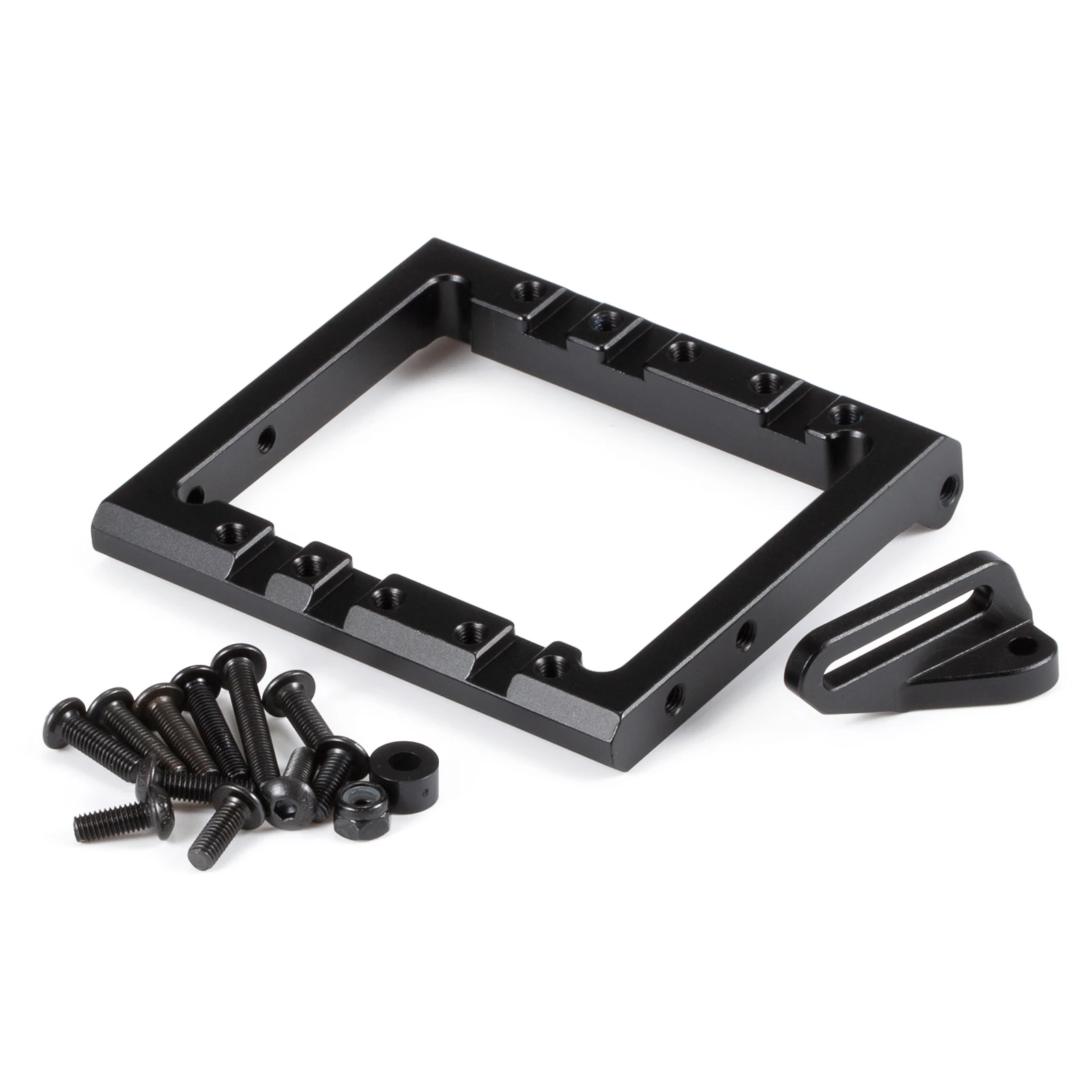

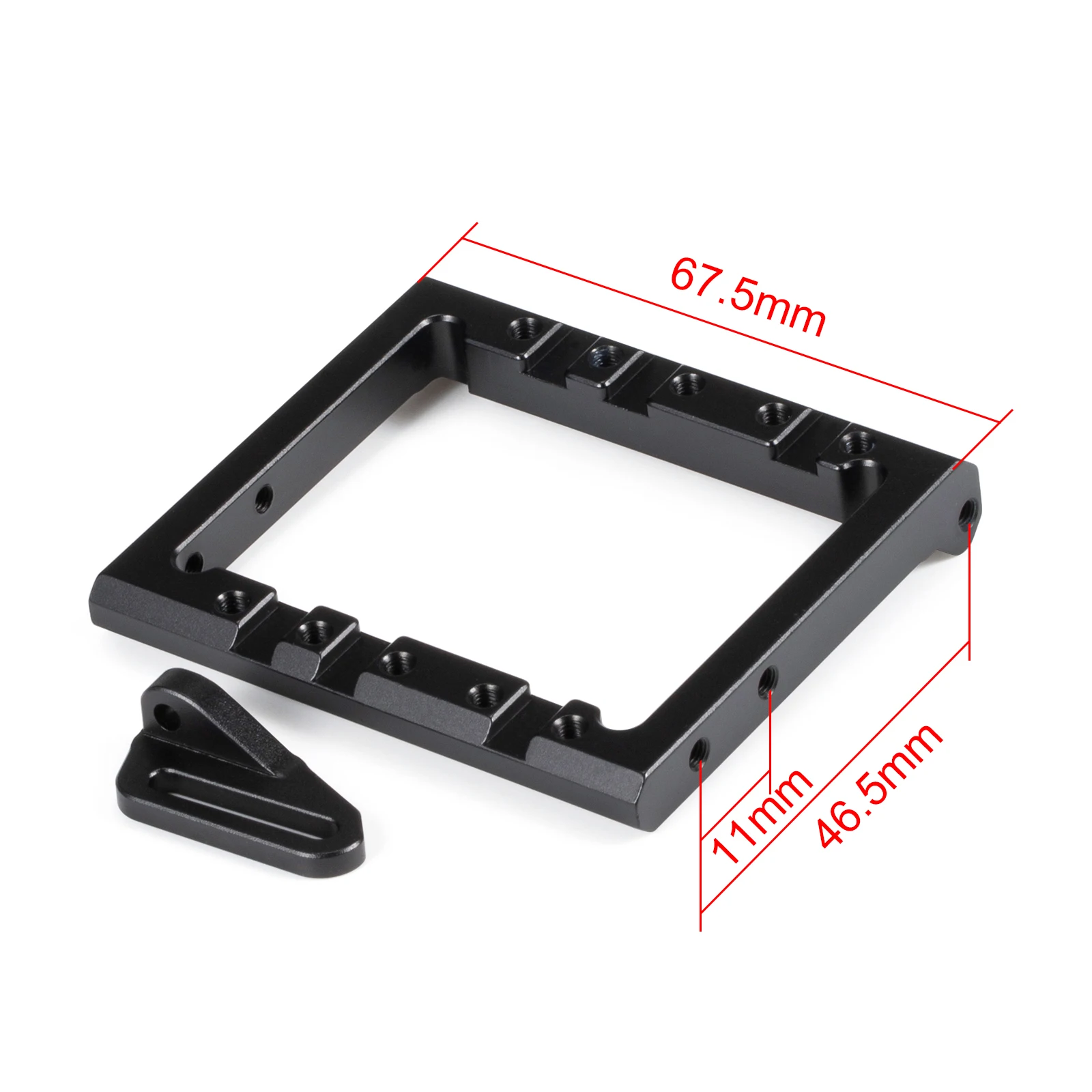

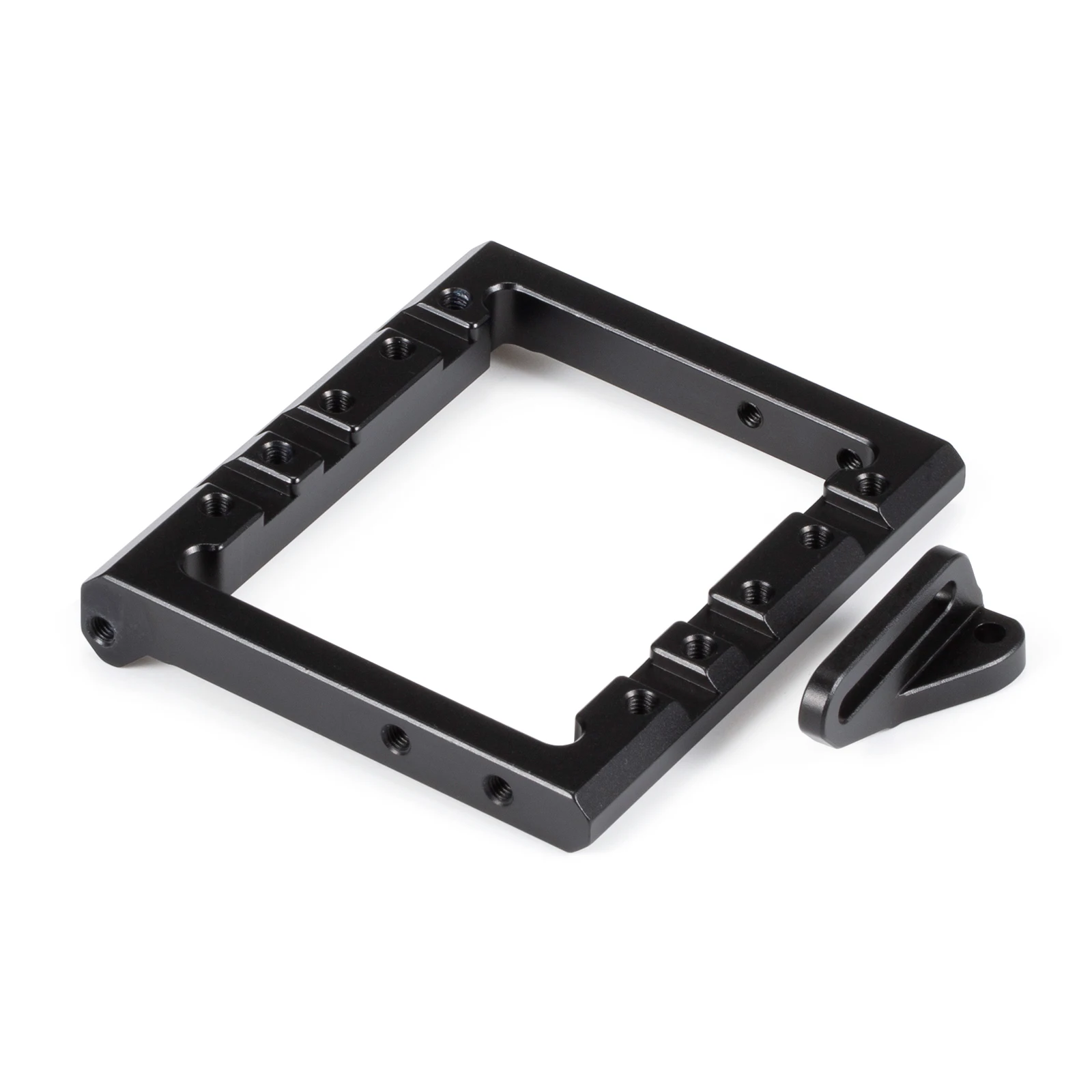

• CNC machined aluminum CMS dual servo mount and panhard mount.

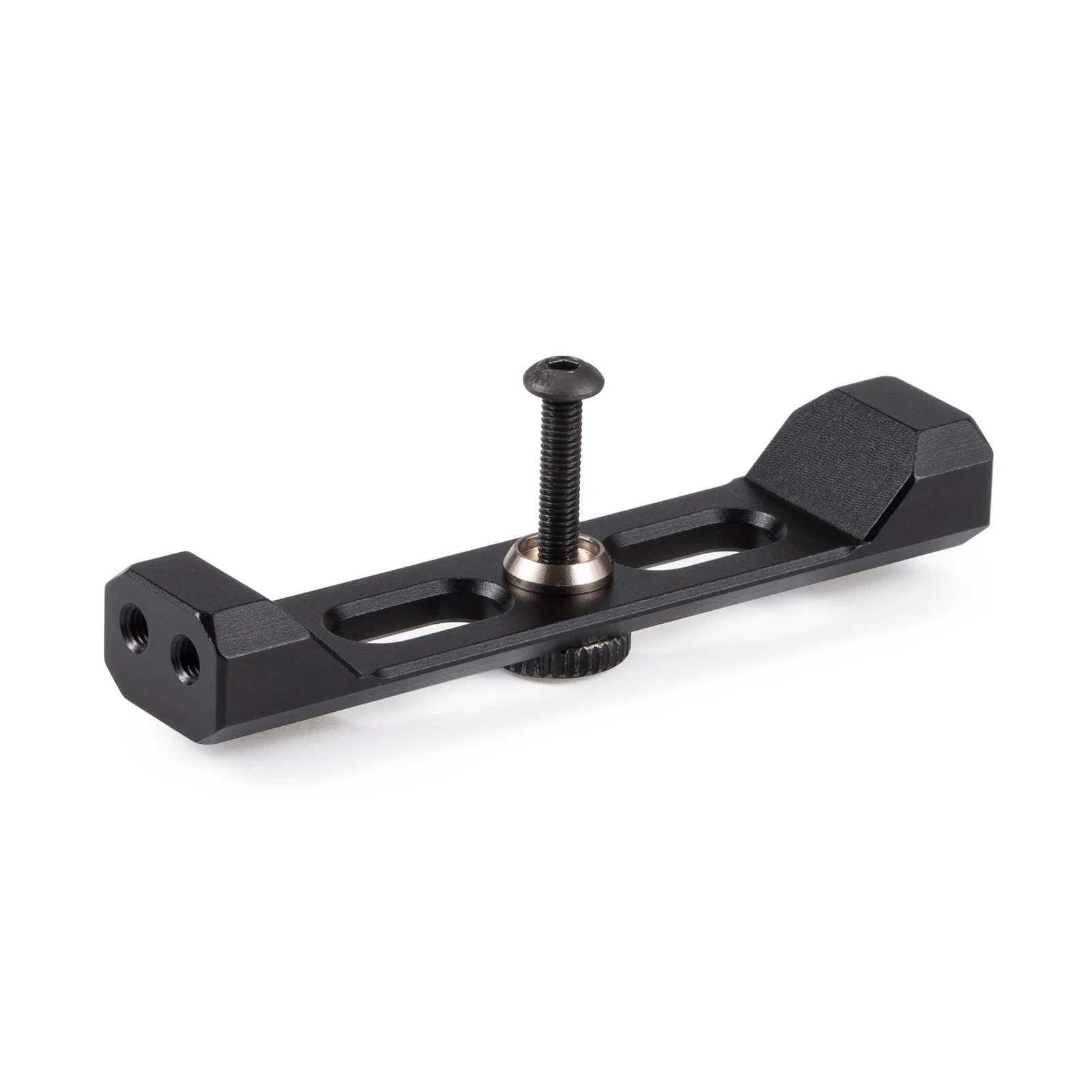

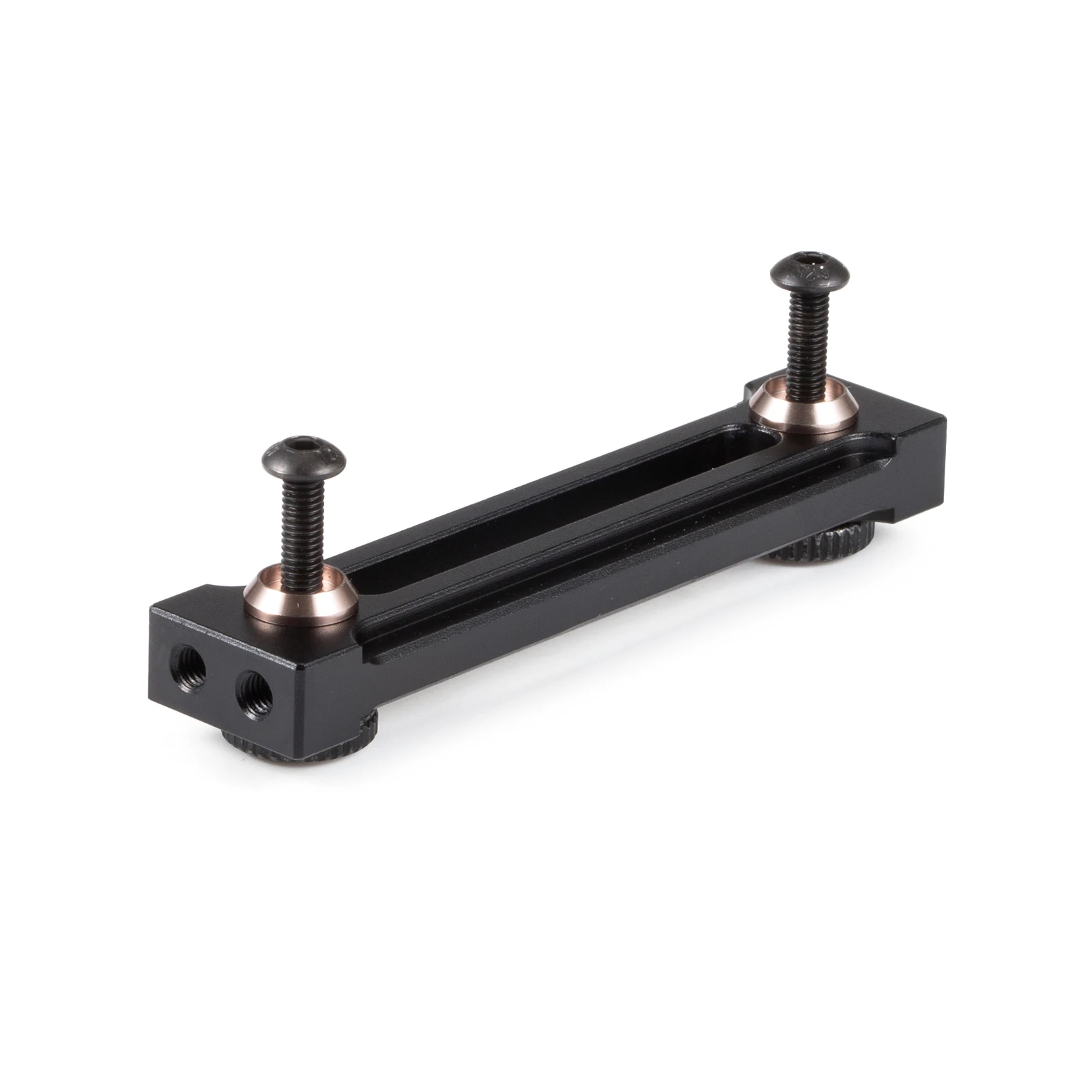

• CNC machined aluminum front body post mounts on crossmembers provide more possibilities for mounting power wagon cab.

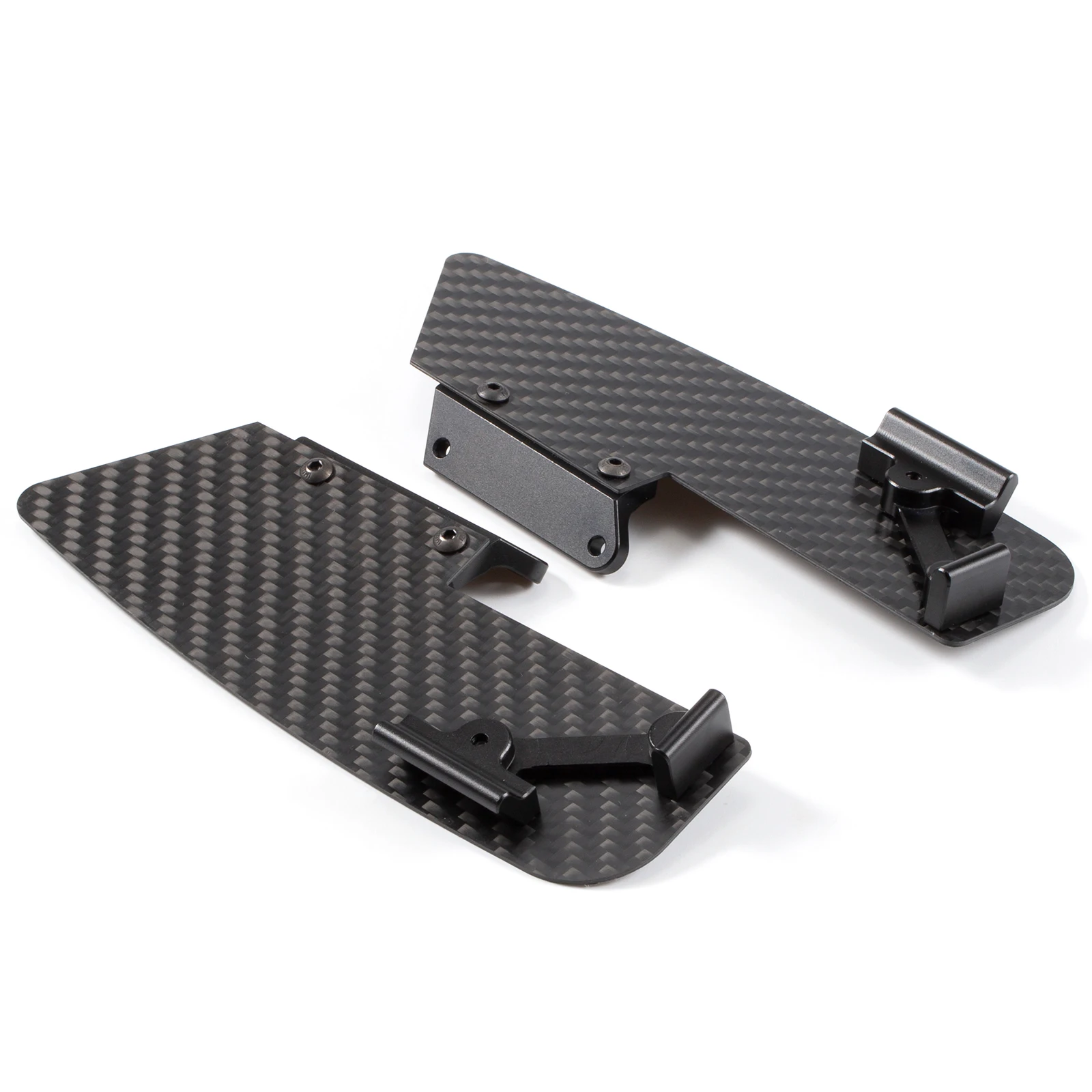

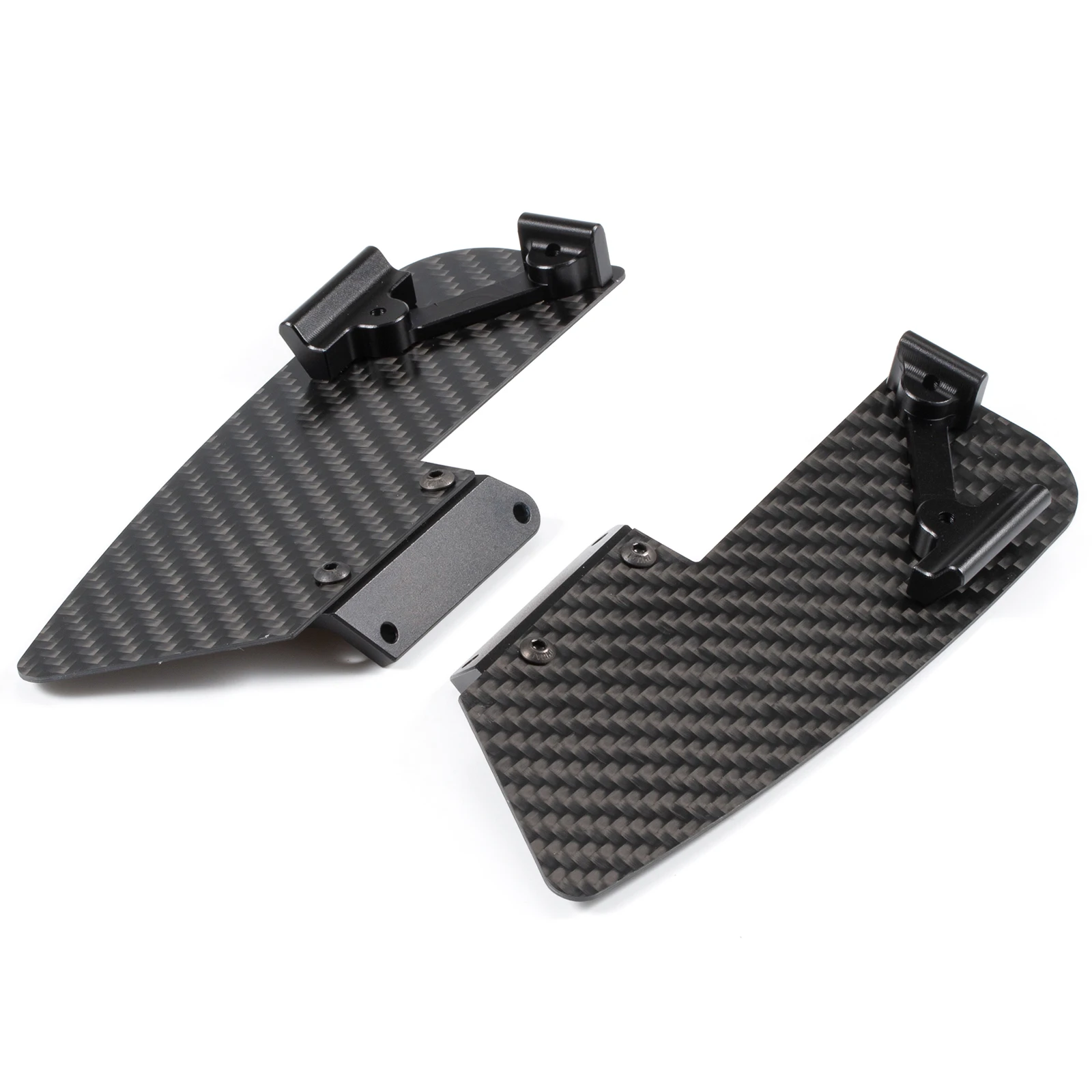

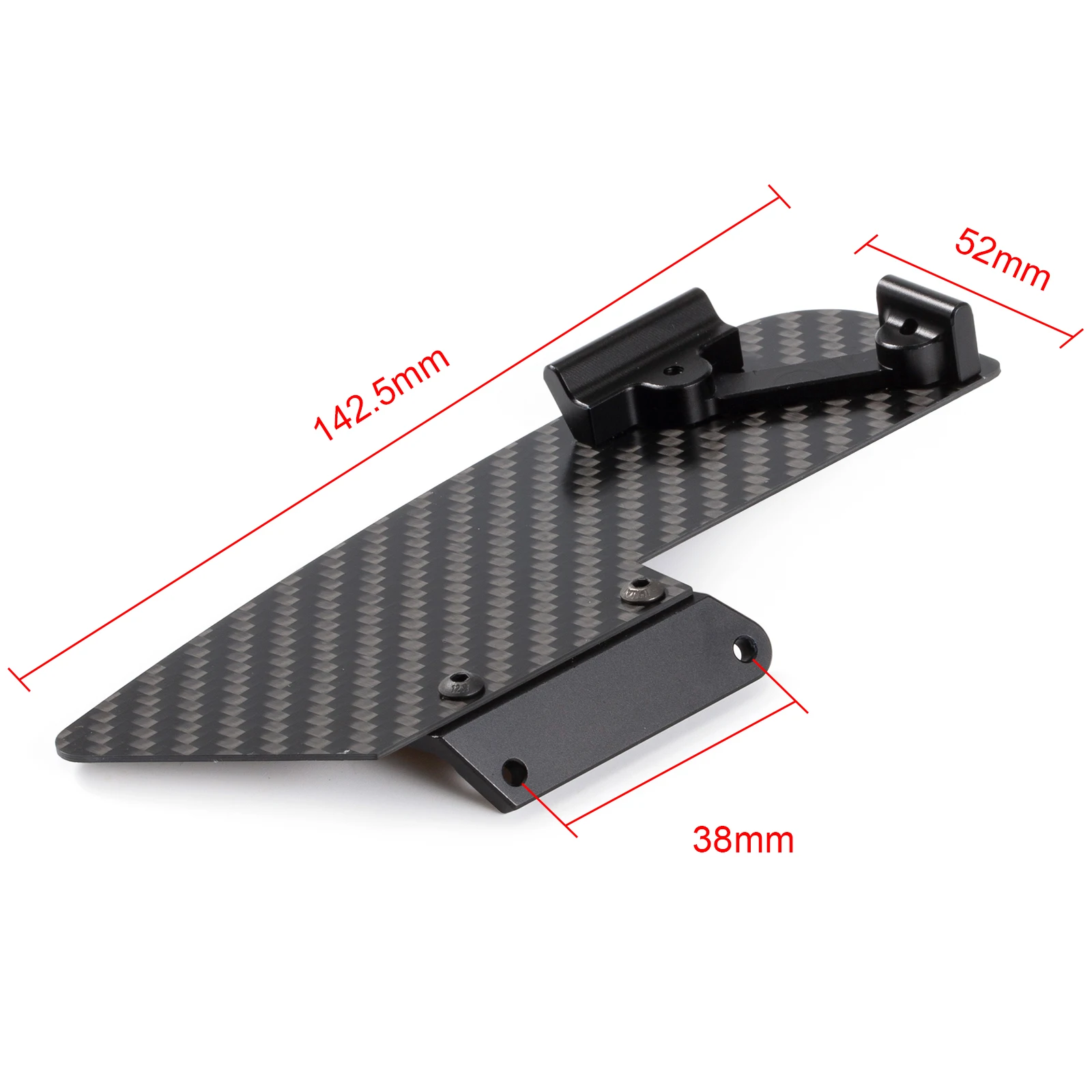

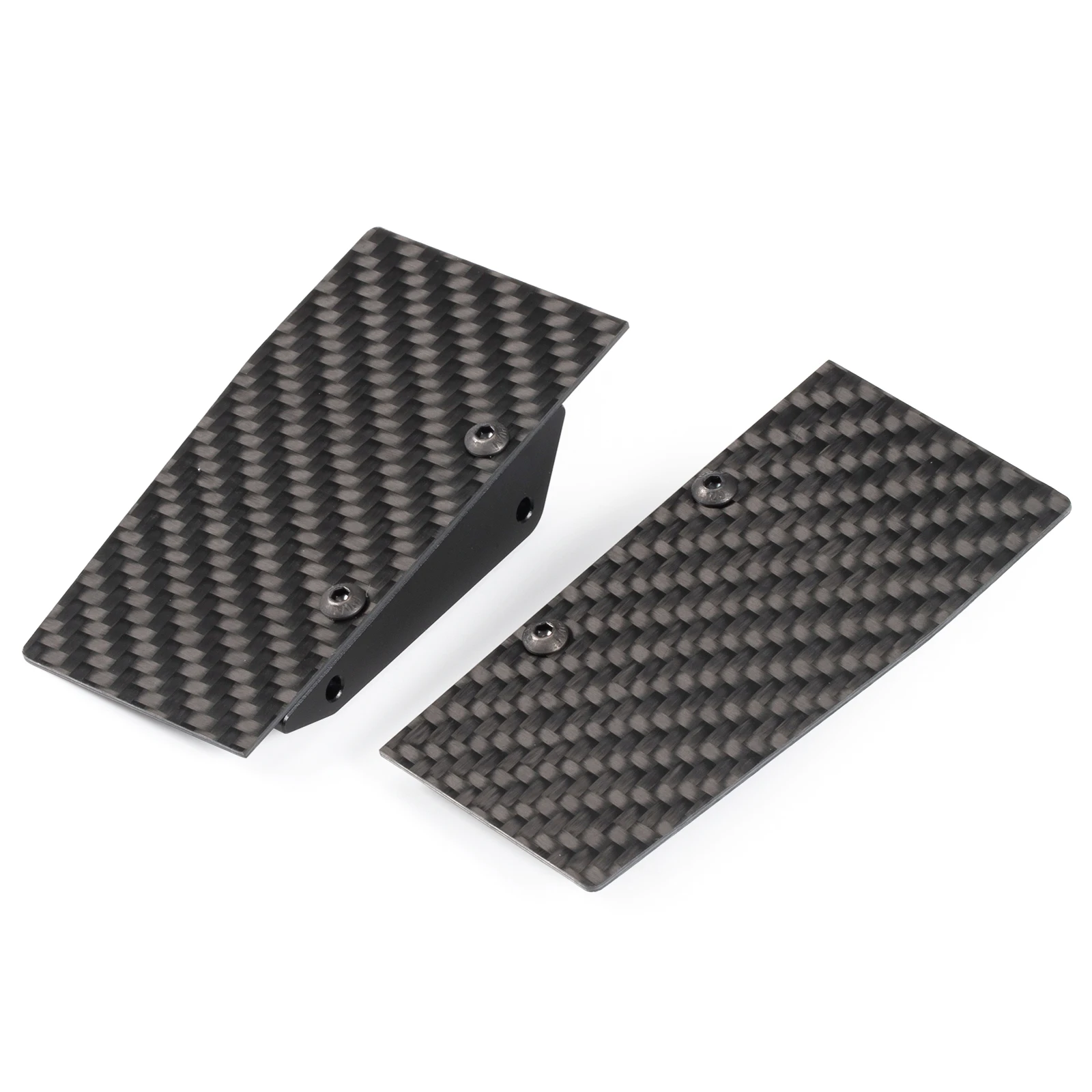

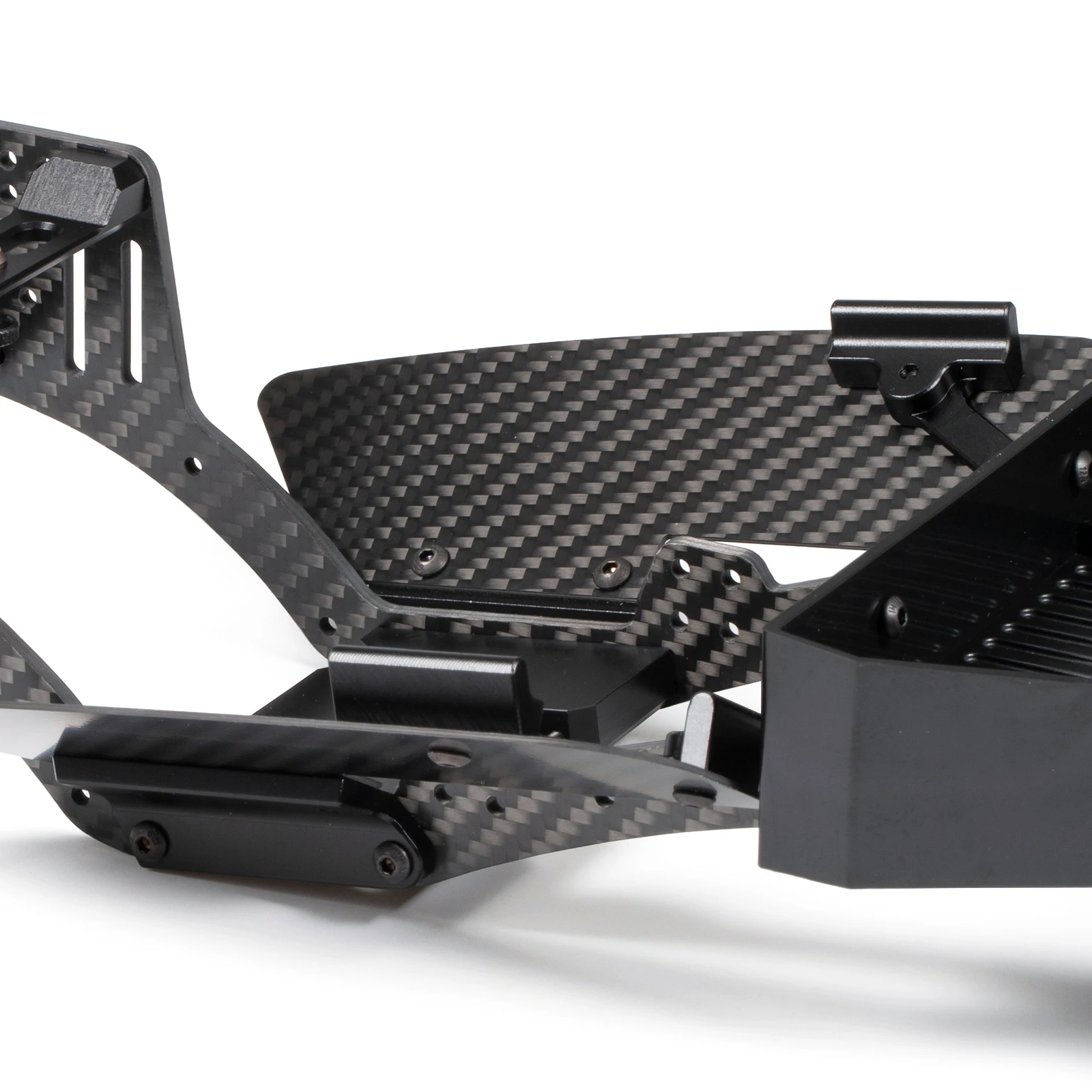

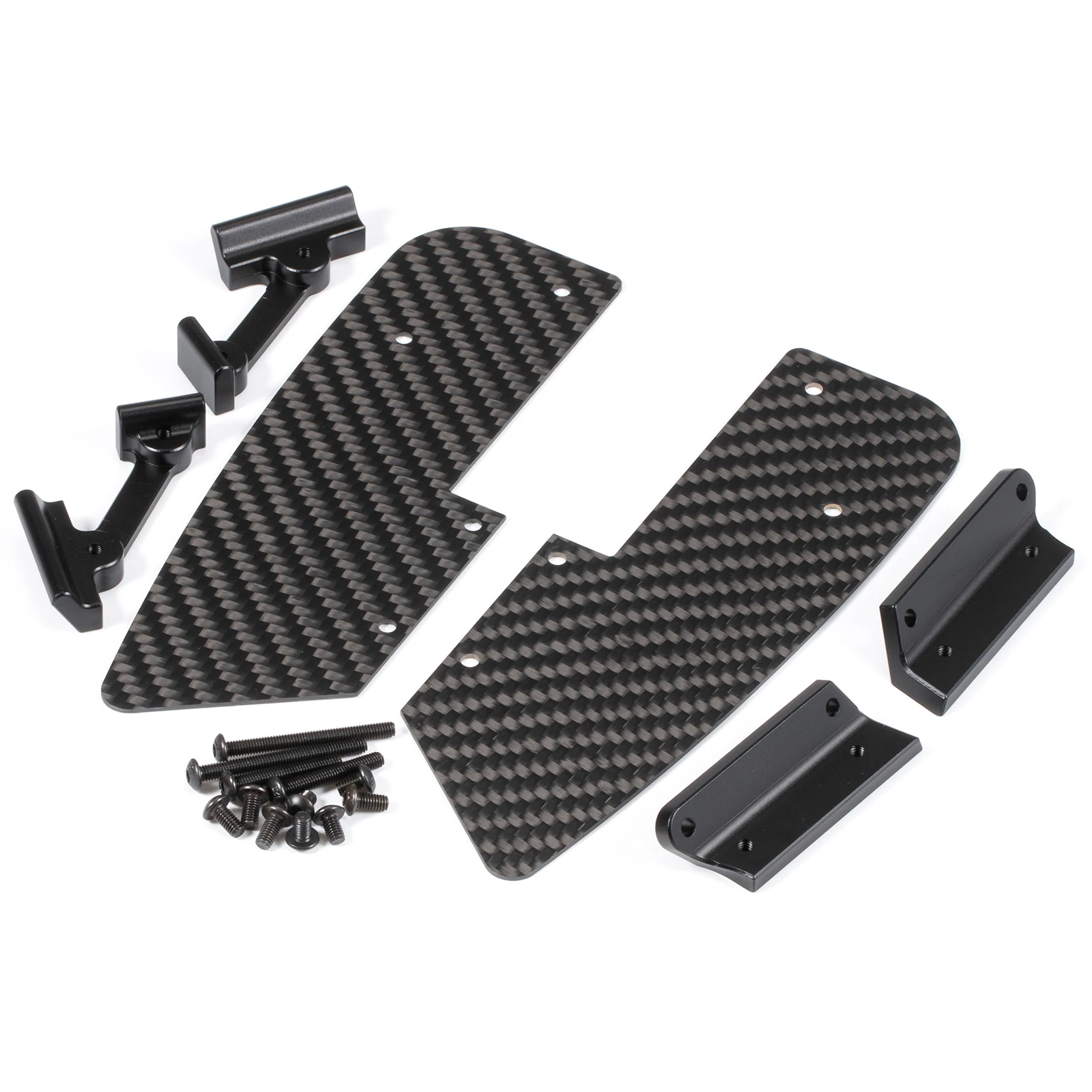

• Carbon sliders, designed to be ran with a Power Wagon Cab.

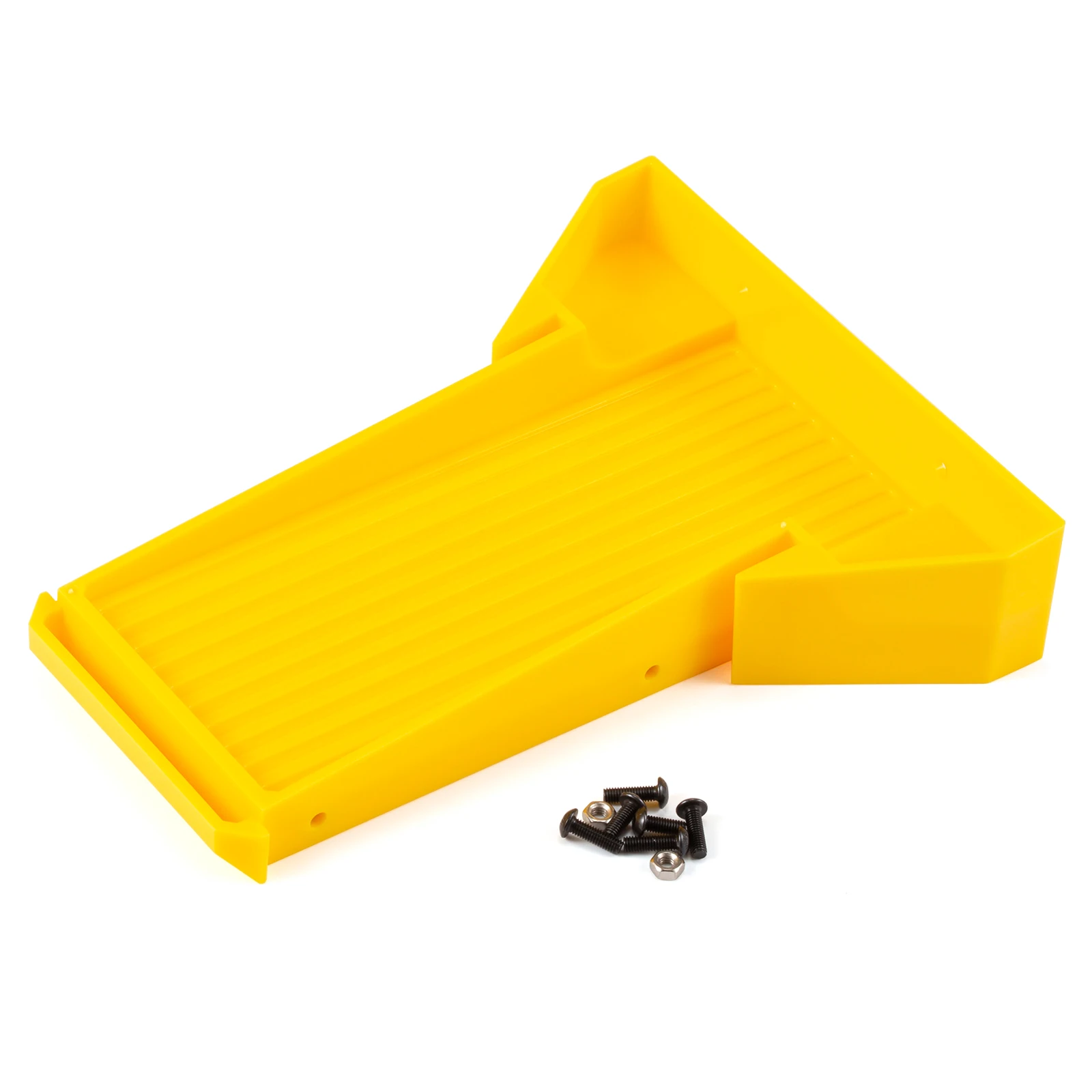

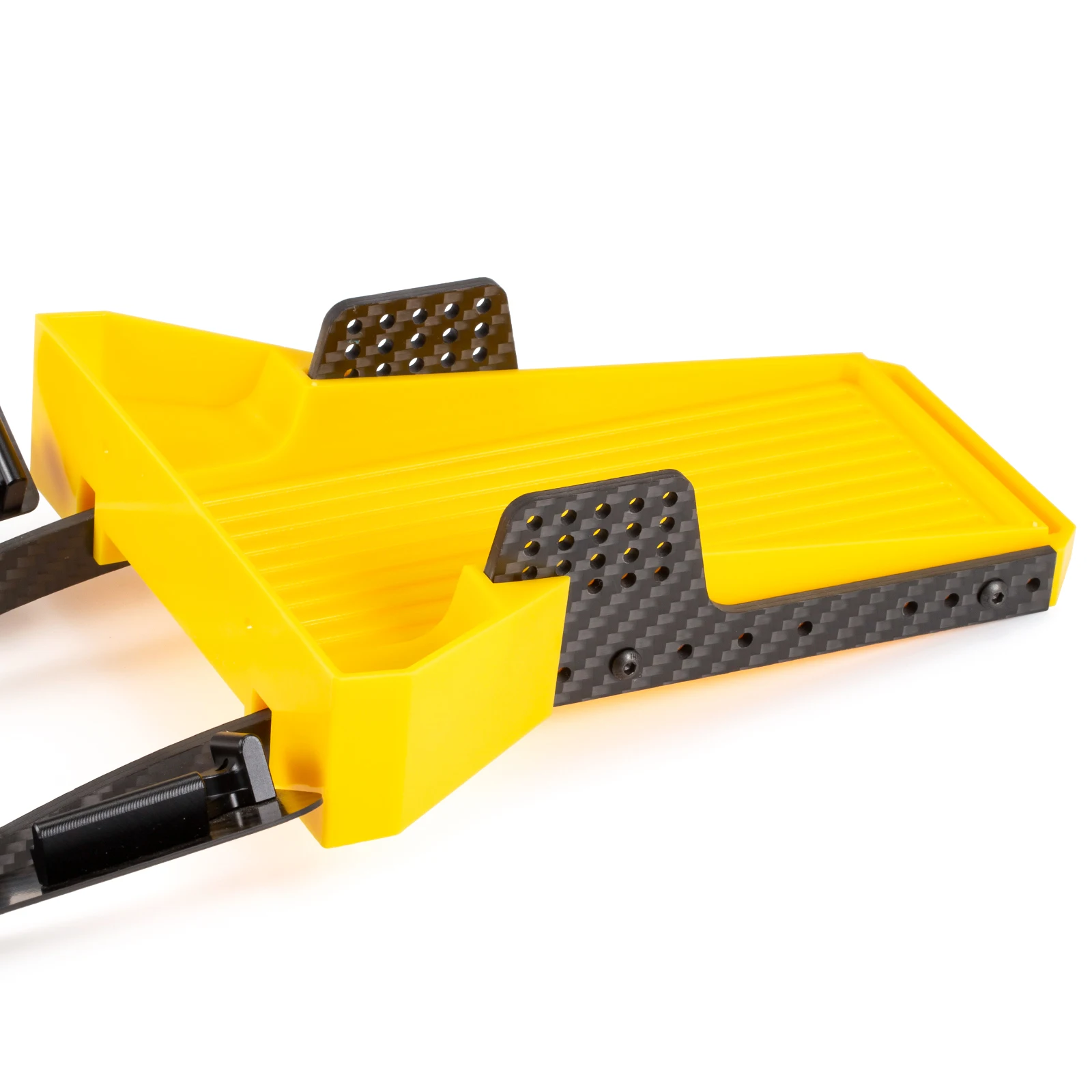

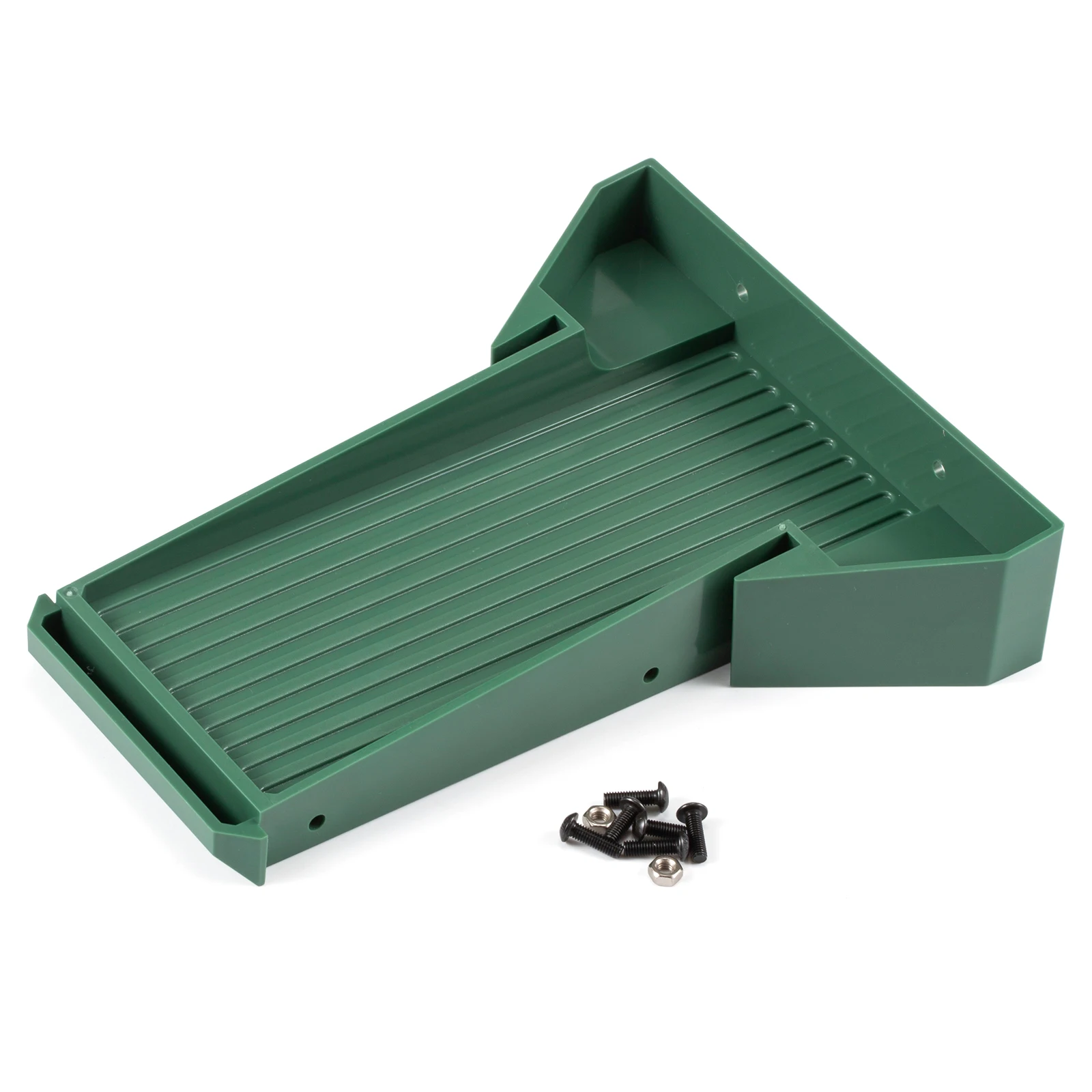

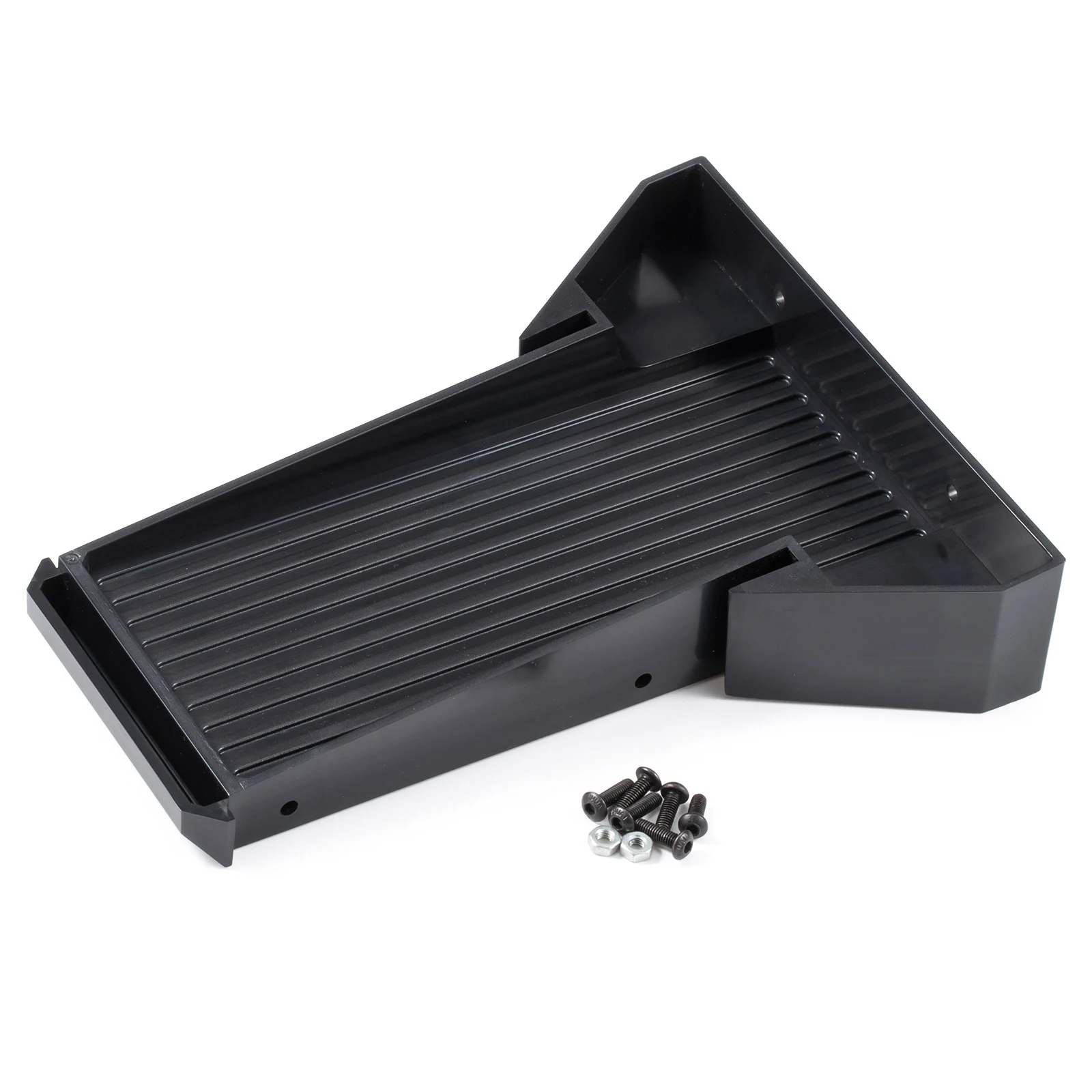

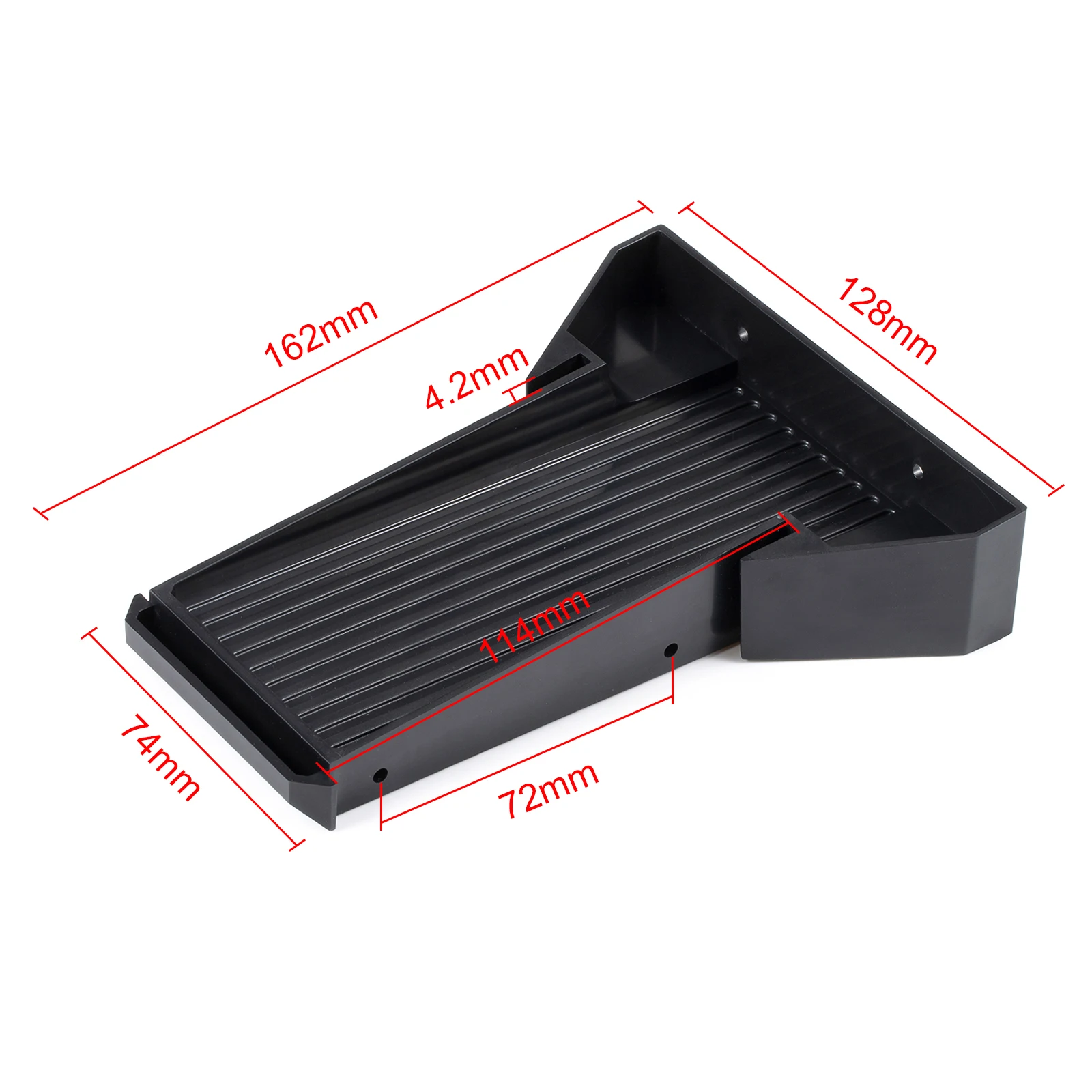

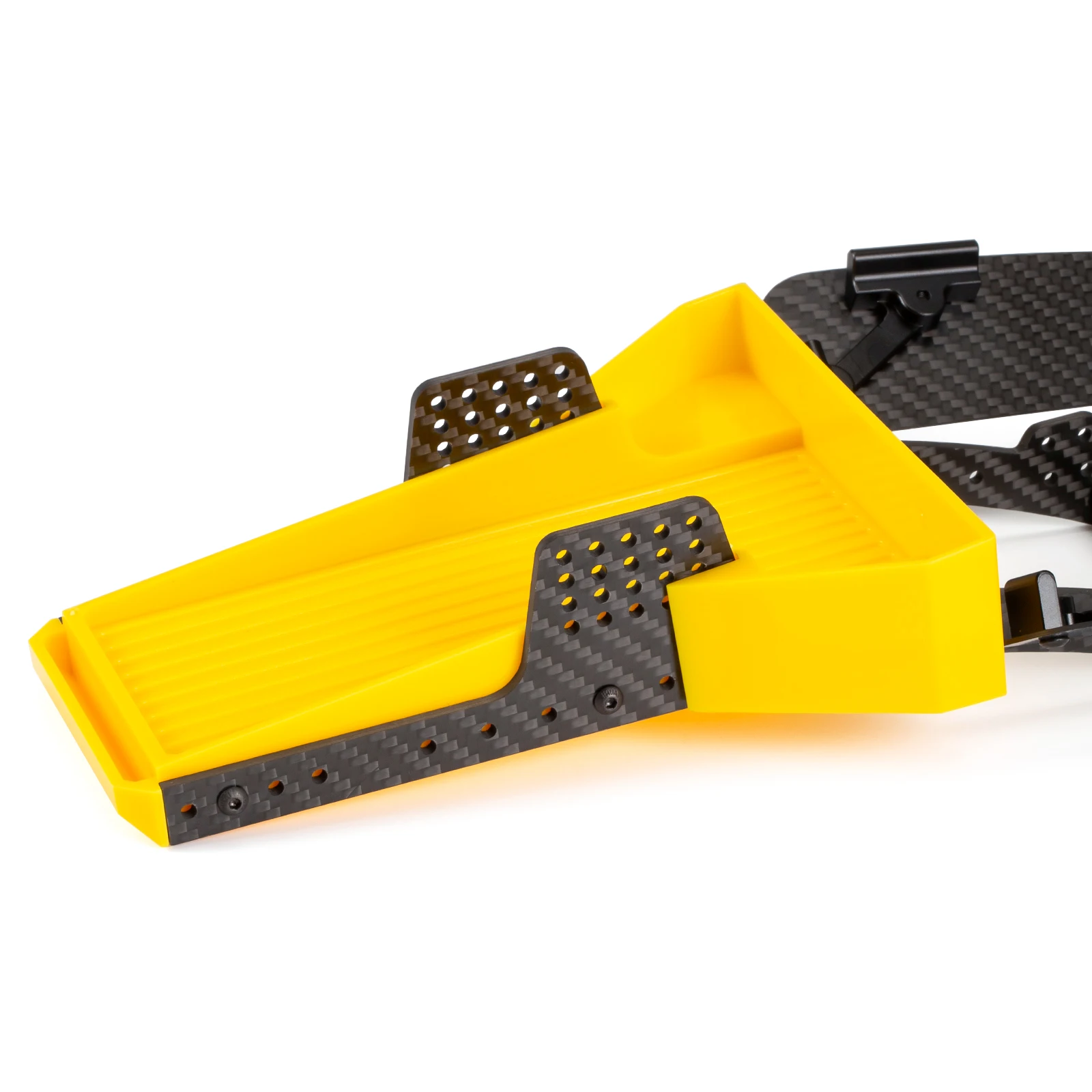

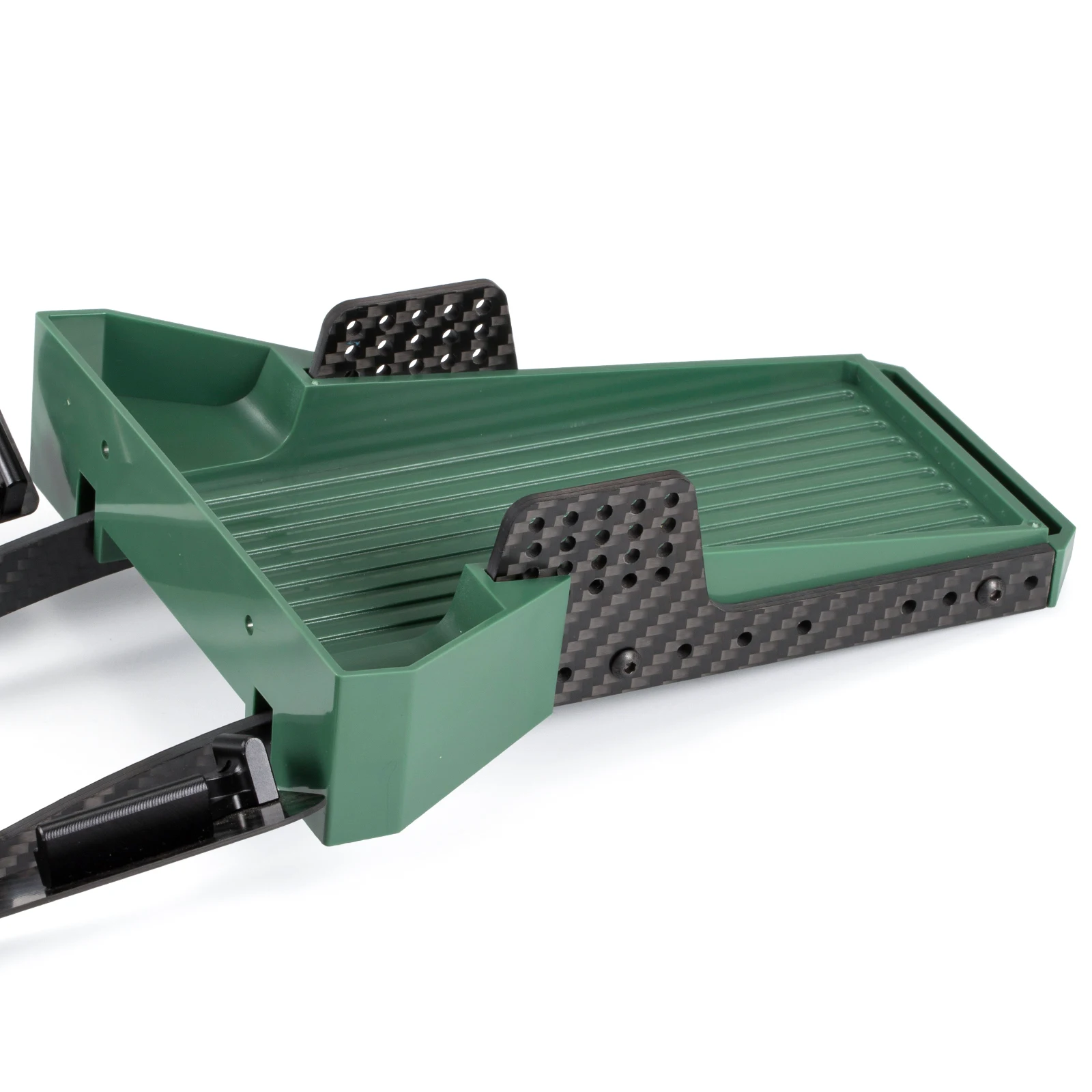

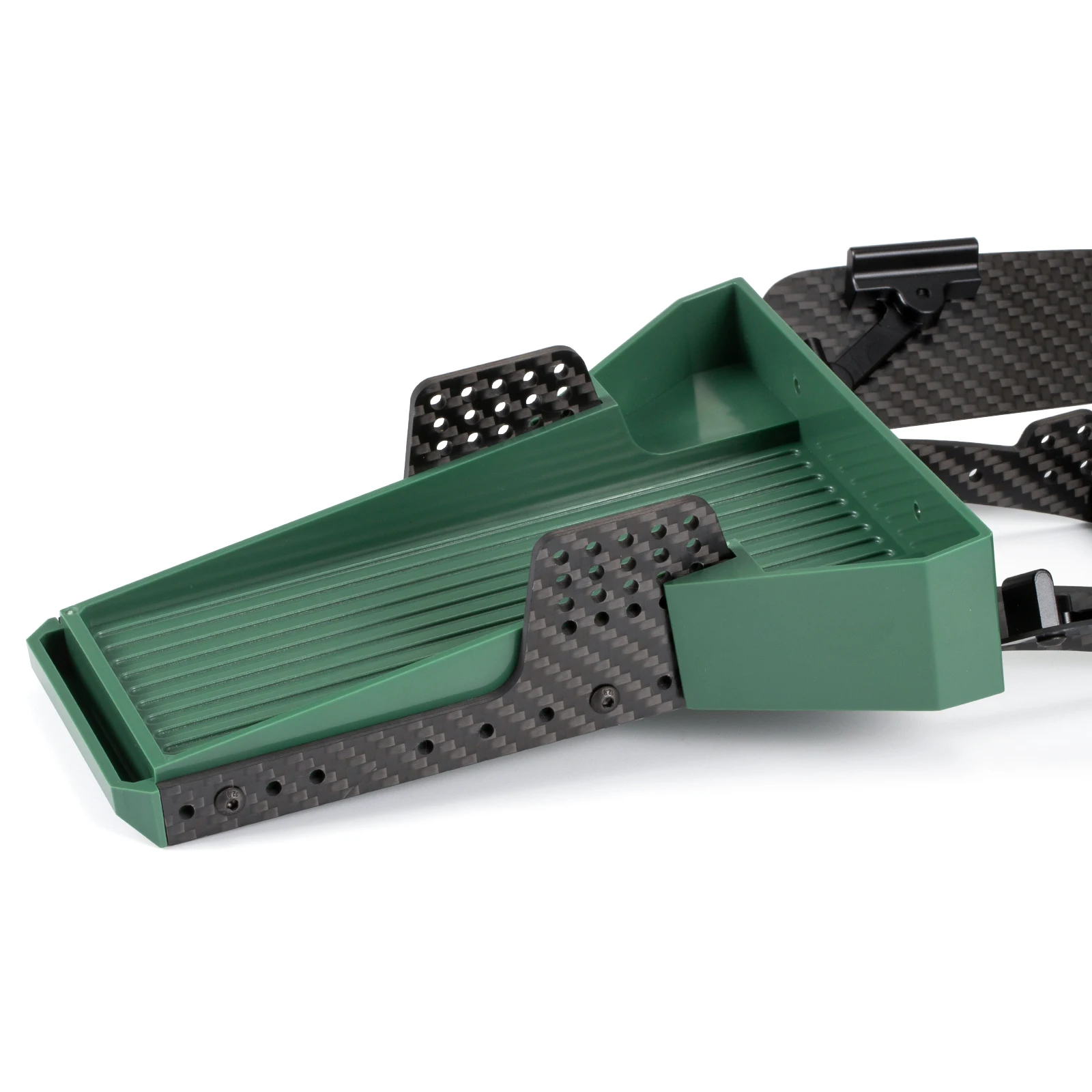

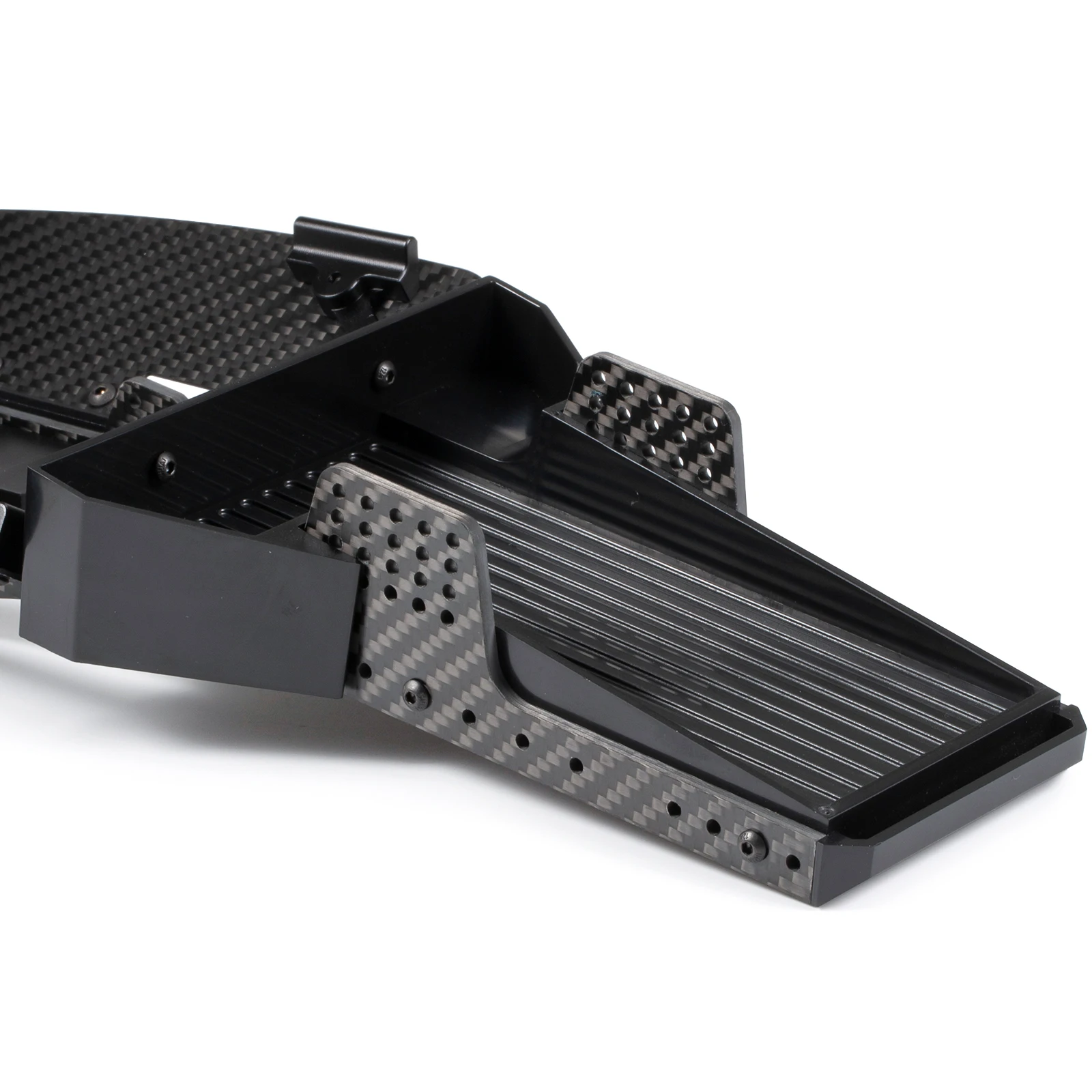

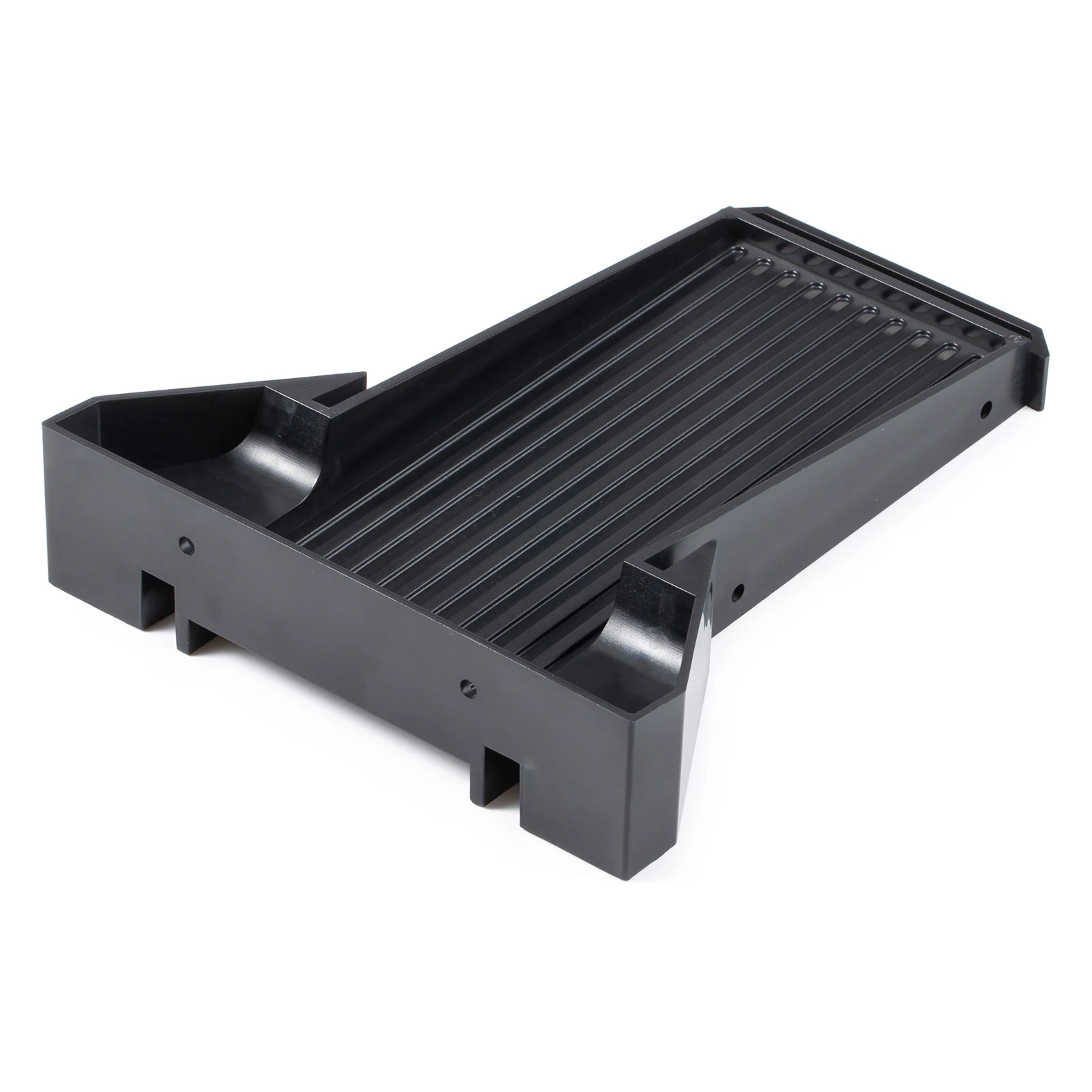

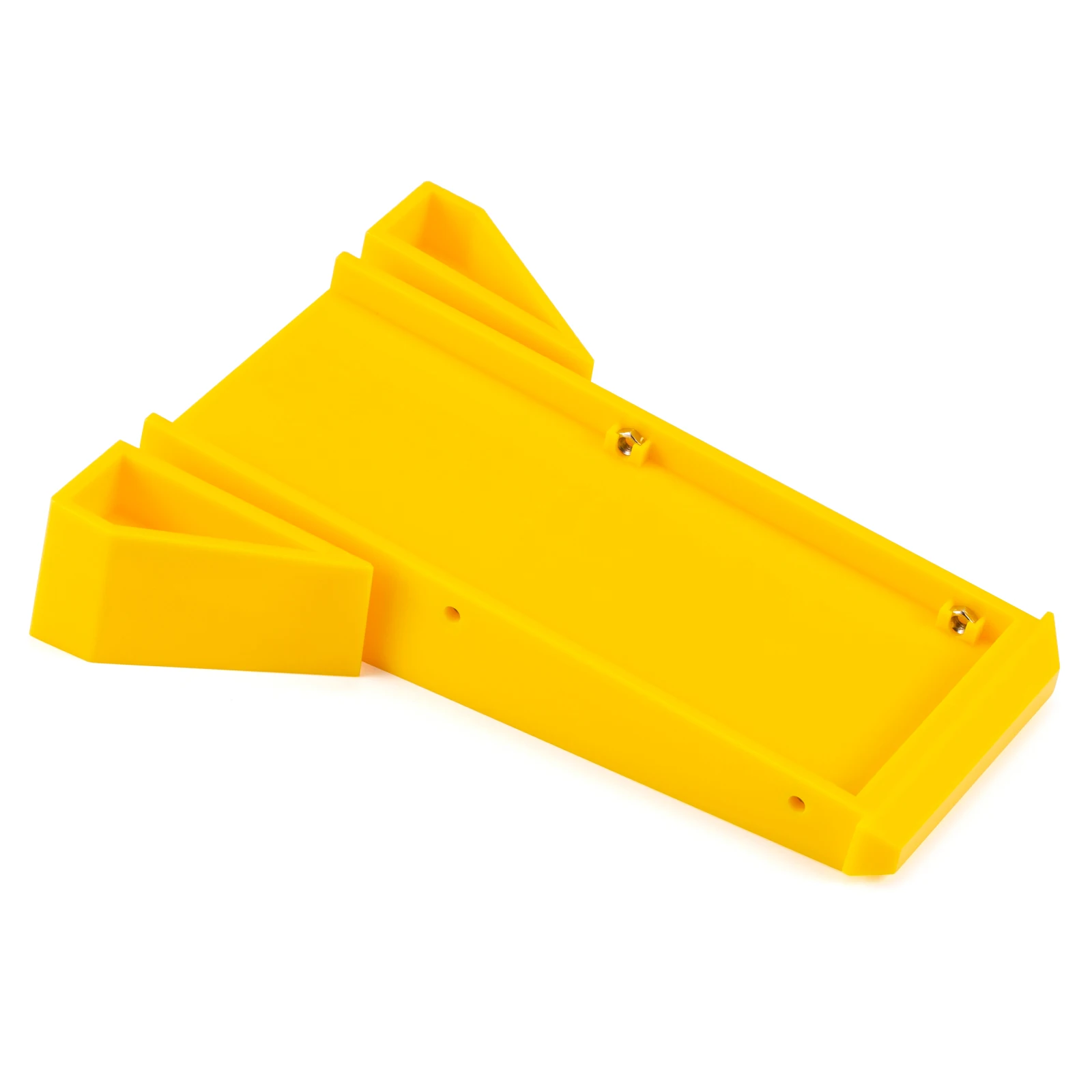

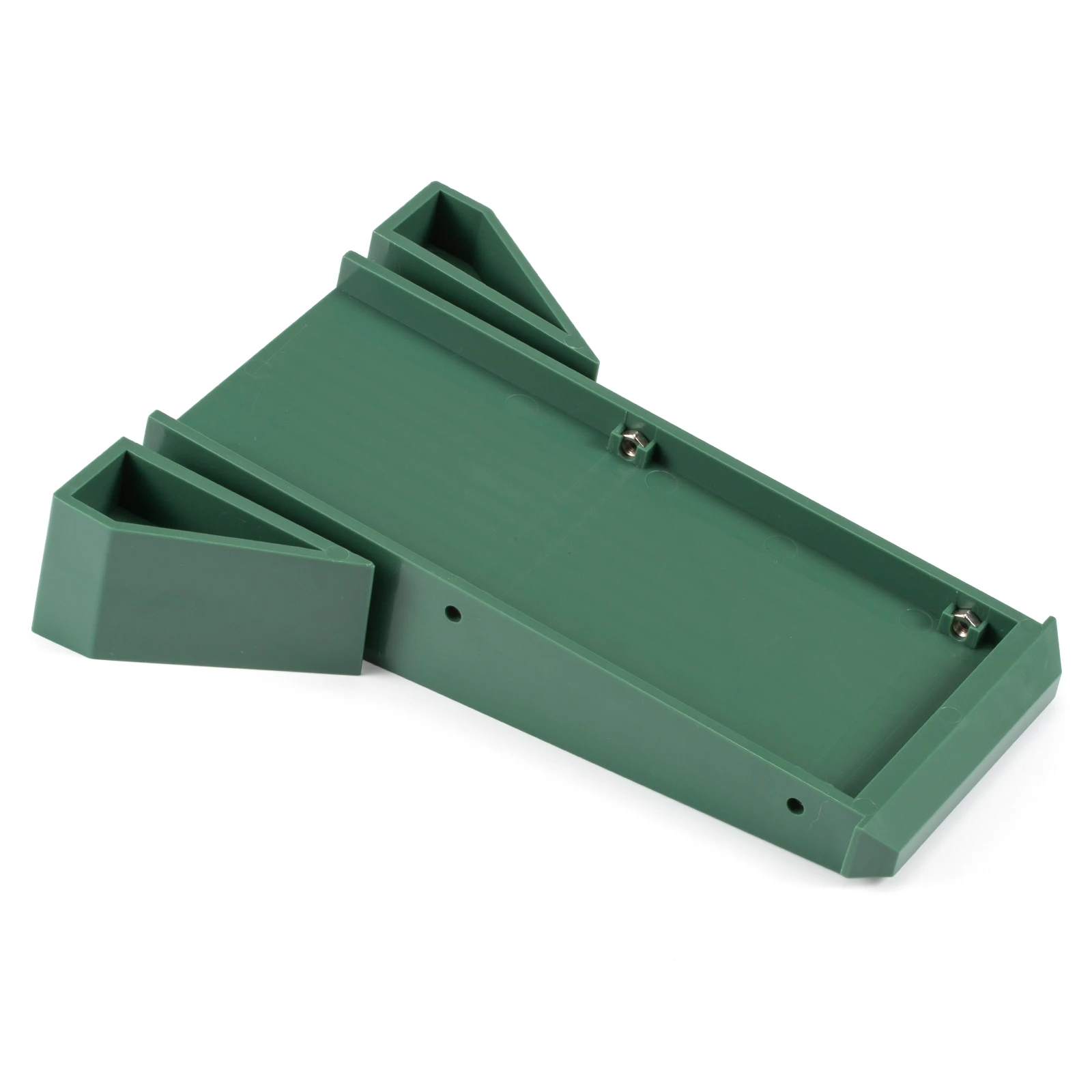

• Molded bed for the Power Wagon configuration, mounted on the chassis rails. bed can also be used on a traditional cheater build with the cab forward position.

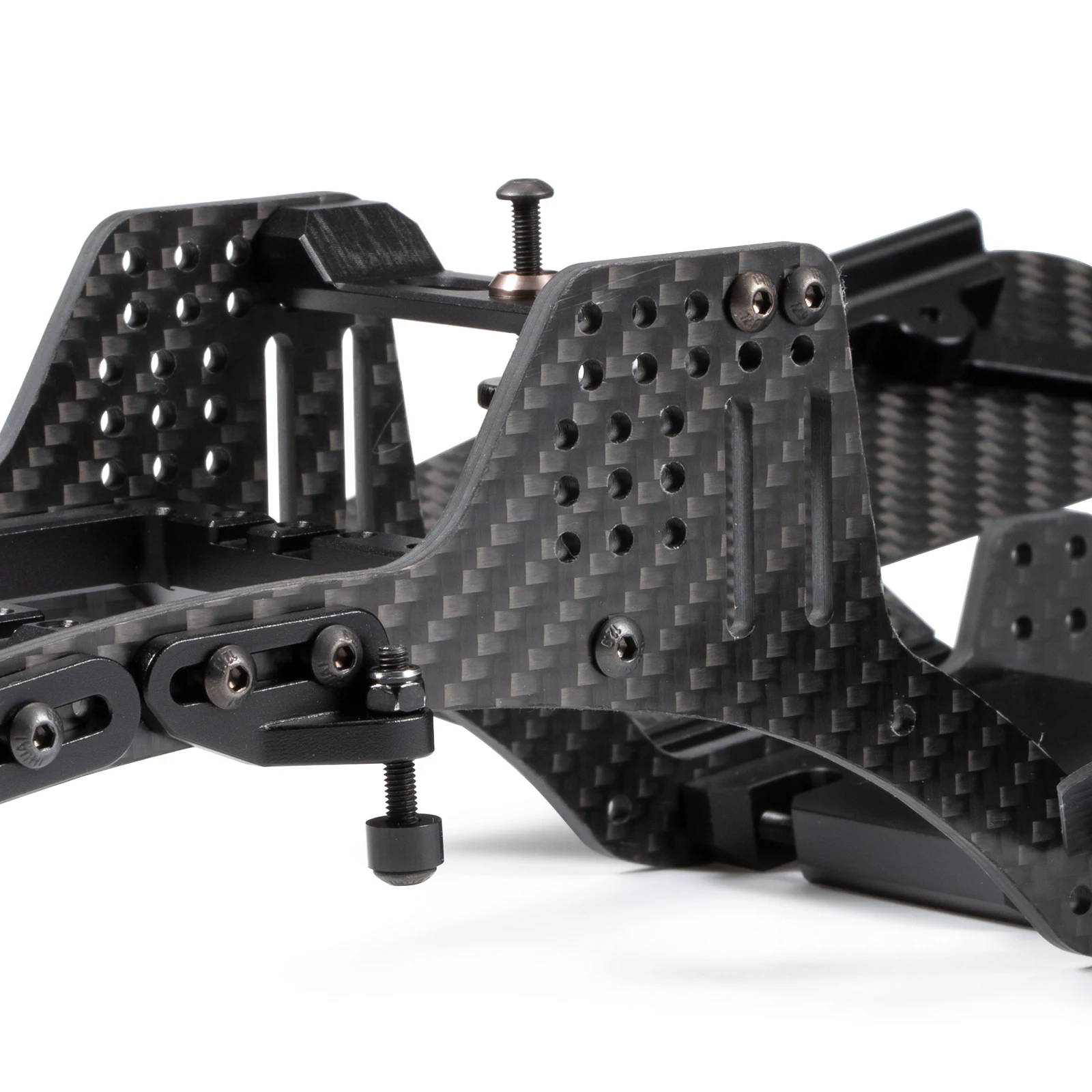

• Multiple holes shock towers, with enough adjustment possibilities.
• Includes hardware required for assembly
• Sold as a kit, self-assembly required.

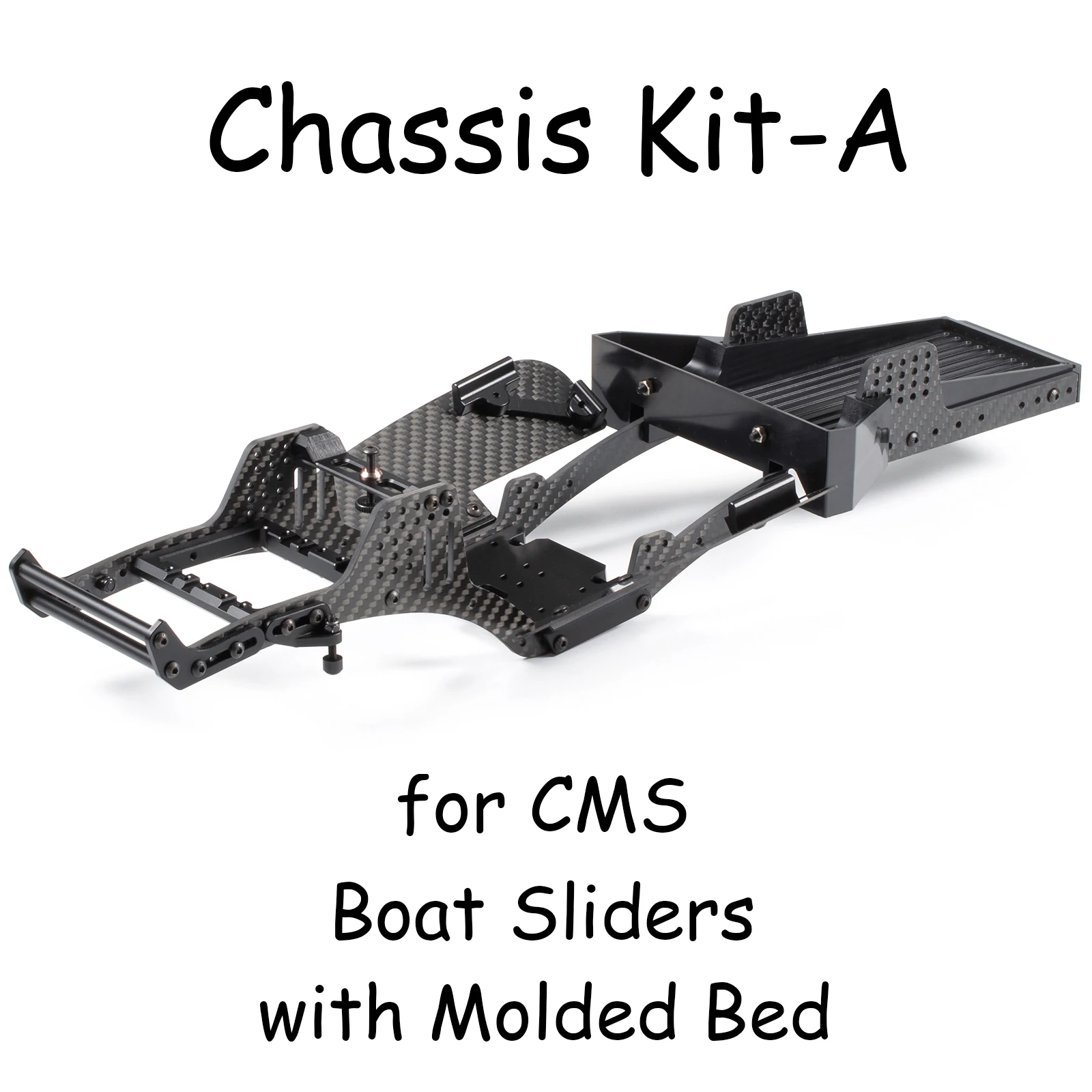

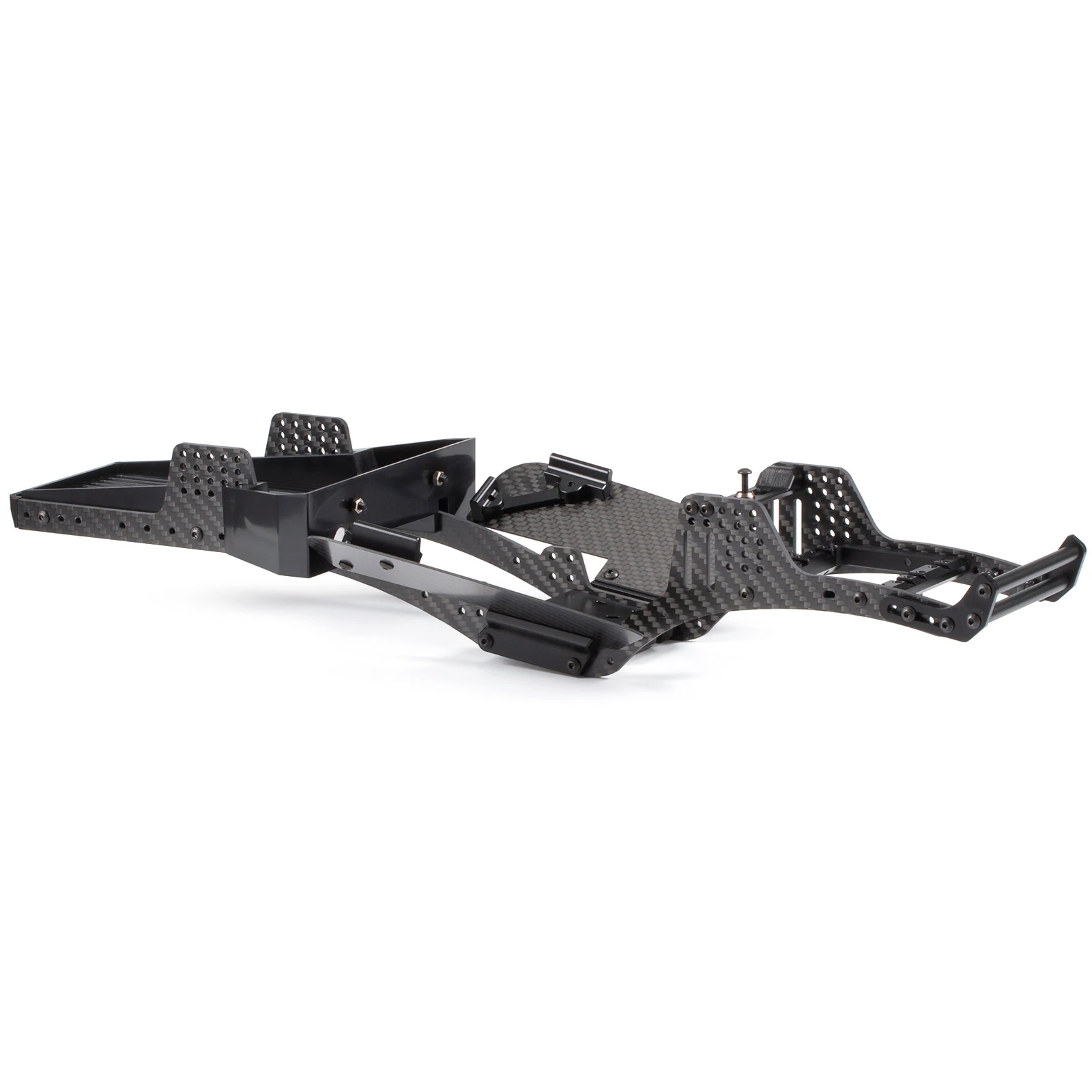

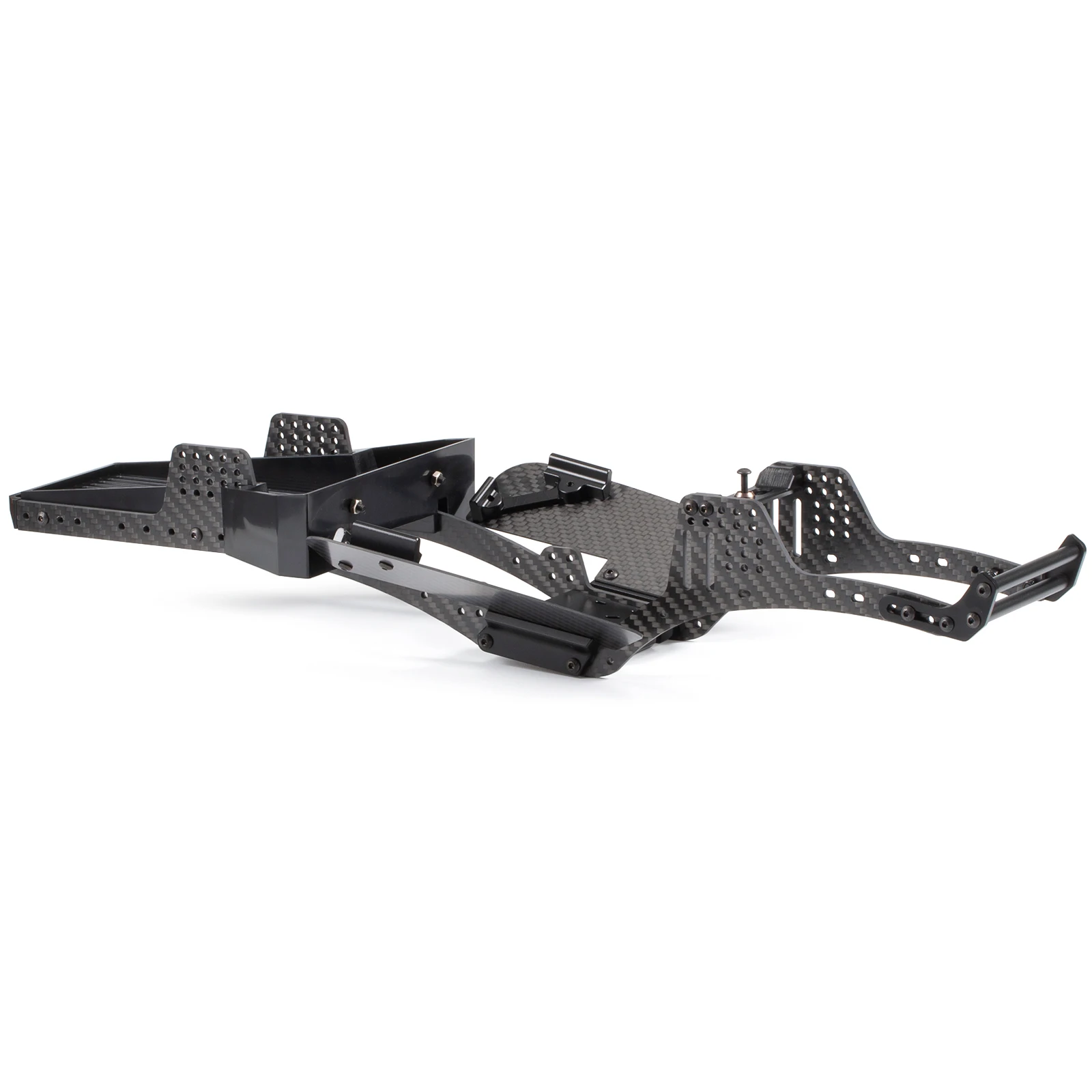

• Chassis Kit-A weighs 326g, Includes:
Carbon Rails, Front Bumper, Front Chassis Brace, CMS Dual Servo Mounts, Skid Plate, Boat Sliders, Bed.

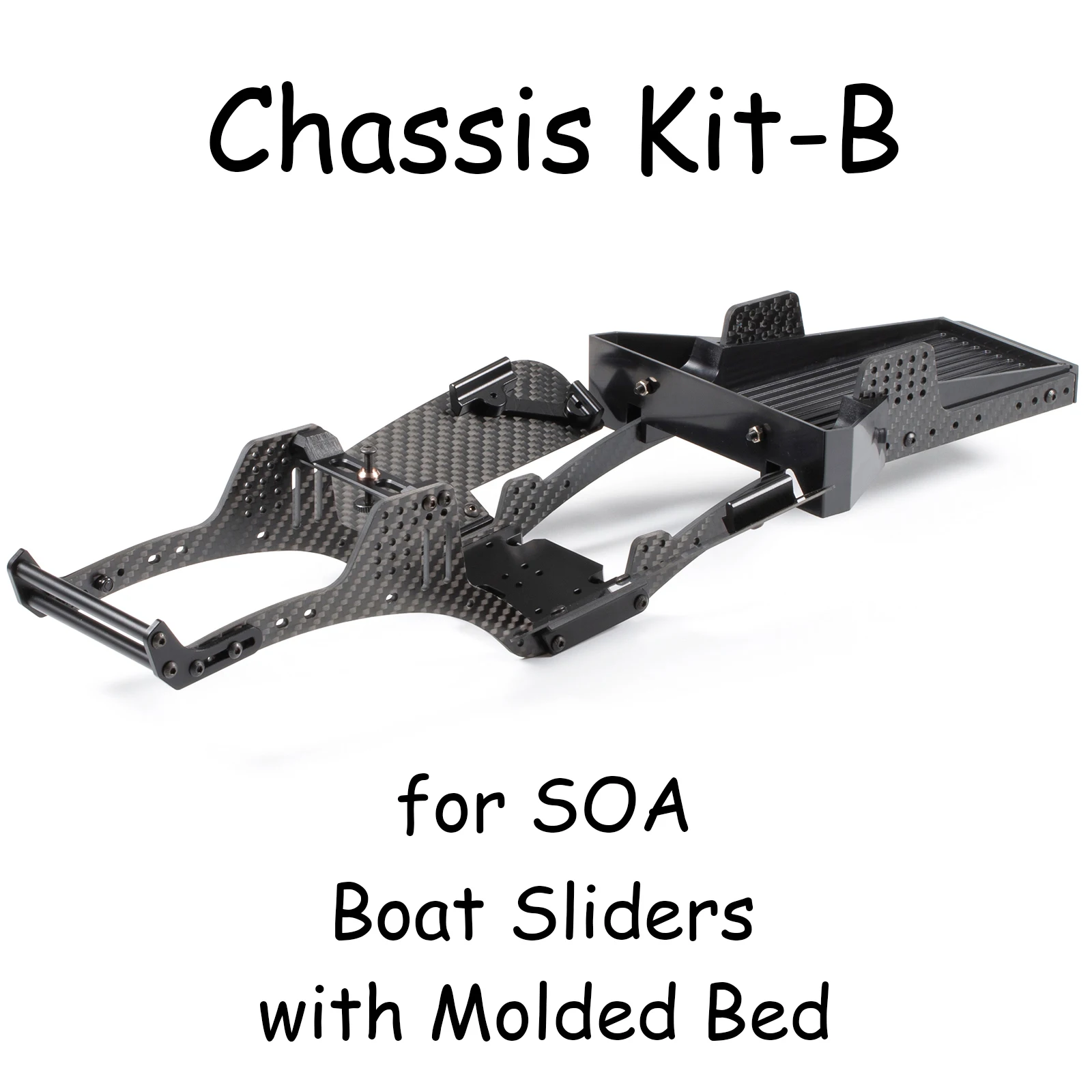

• Chassis Kit-B weighs 286g, Includes:
Carbon Rails, Front Bumper, Front Chassis Brace, Skid Plate, Boat Sliders, Bed.

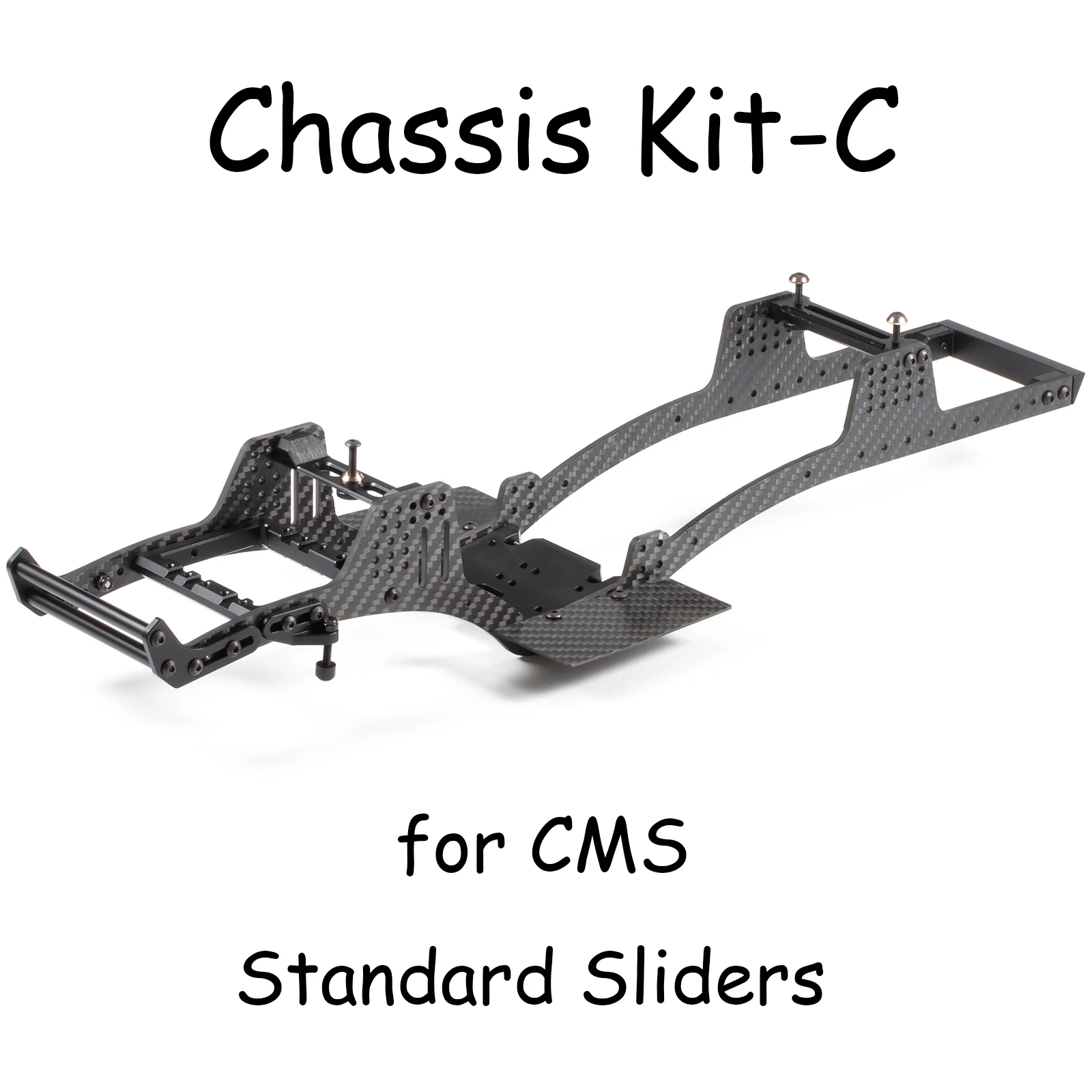

• Chassis Kit-C weighs 252g, Includes:

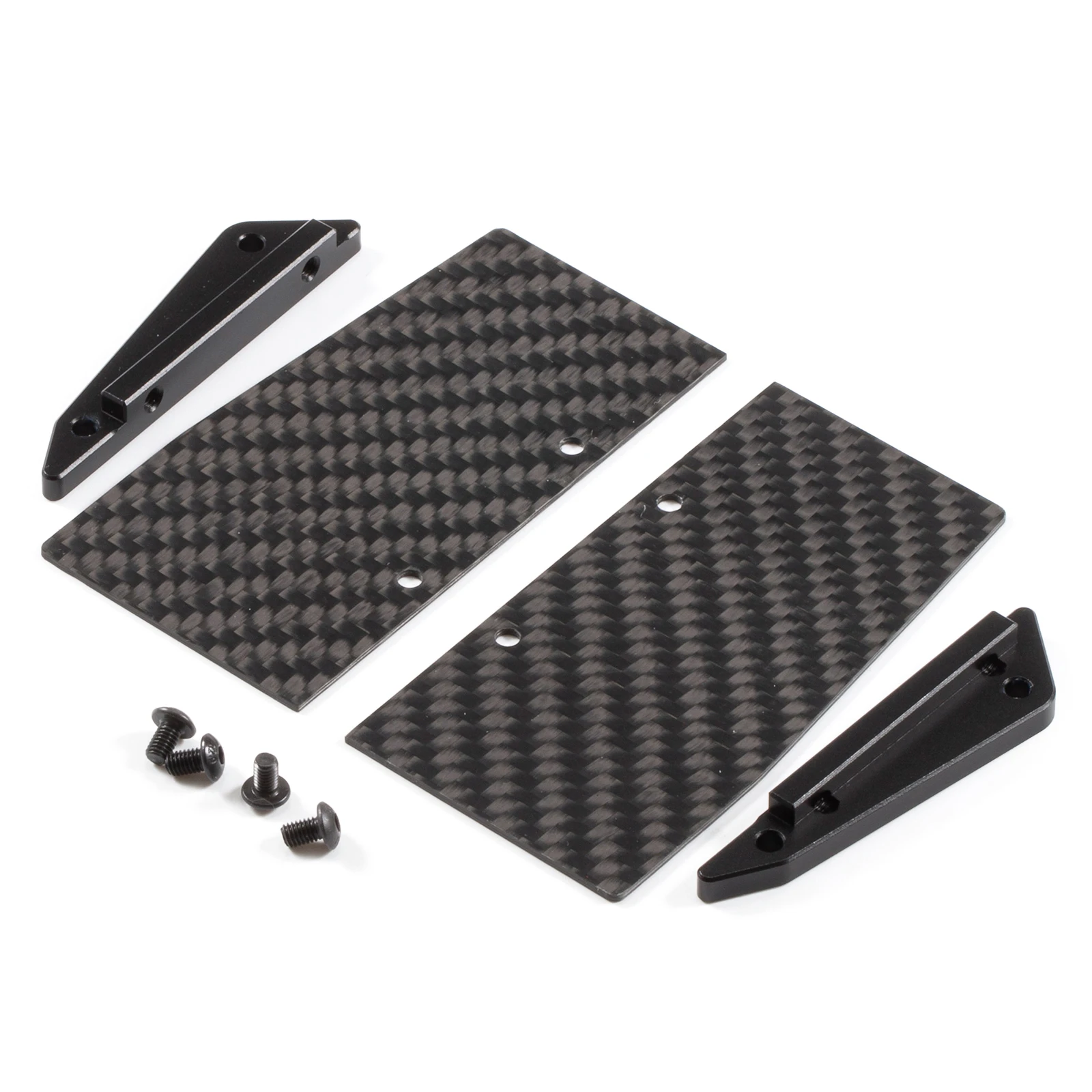

Carbon Rails, Front Bumper, Front Chassis Brace, CMS Dual Servo Mounts, Skid Plate, Standard Sliders, Rear Chassis Brace, Rear Bumper.

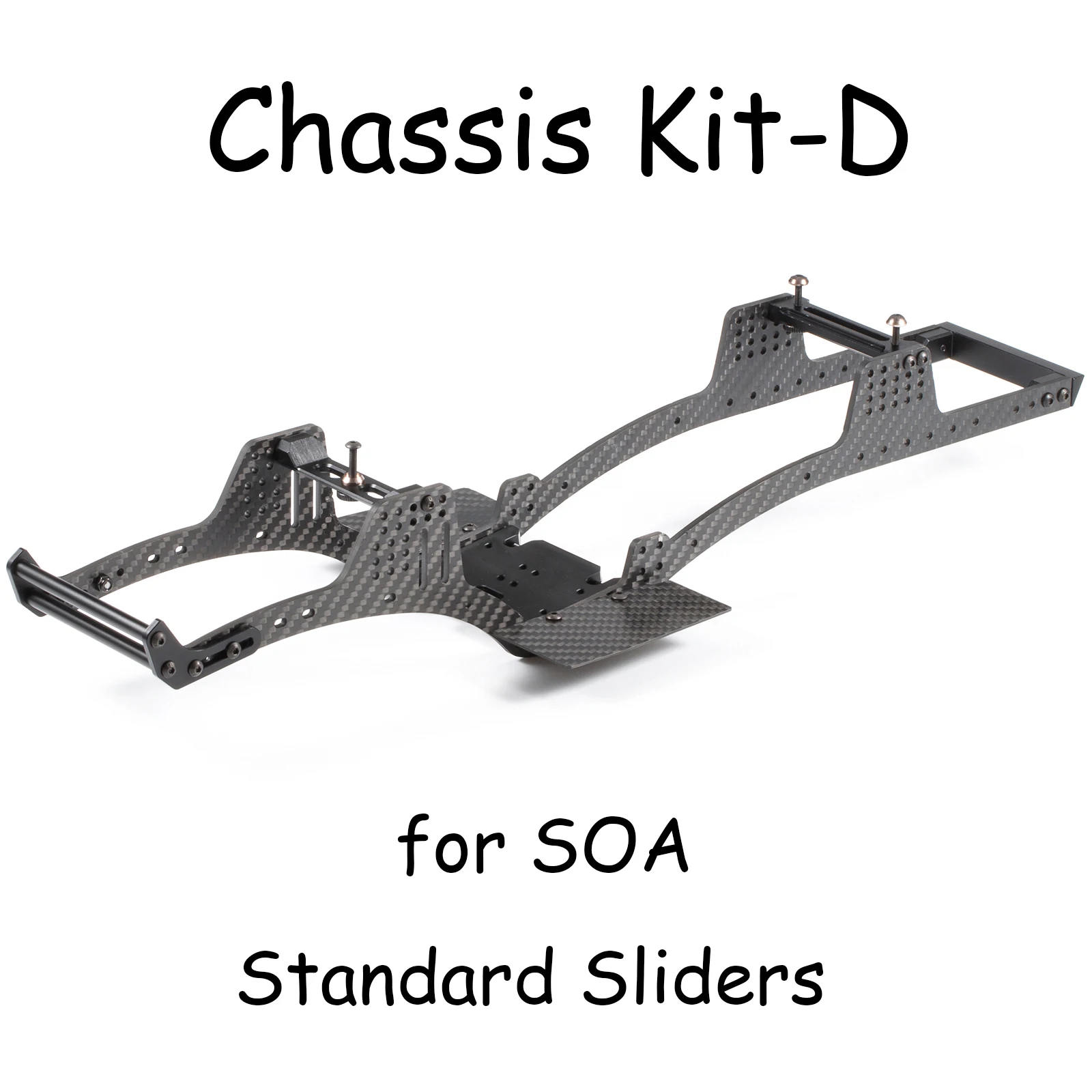

• Chassis Kit-D weighs 212g, Includes:
Carbon Rails, Front Bumper, Front Chassis Brace, Skid Plate, Standard Sliders, Rear Chassis Brace, Rear Bumper.
Note:

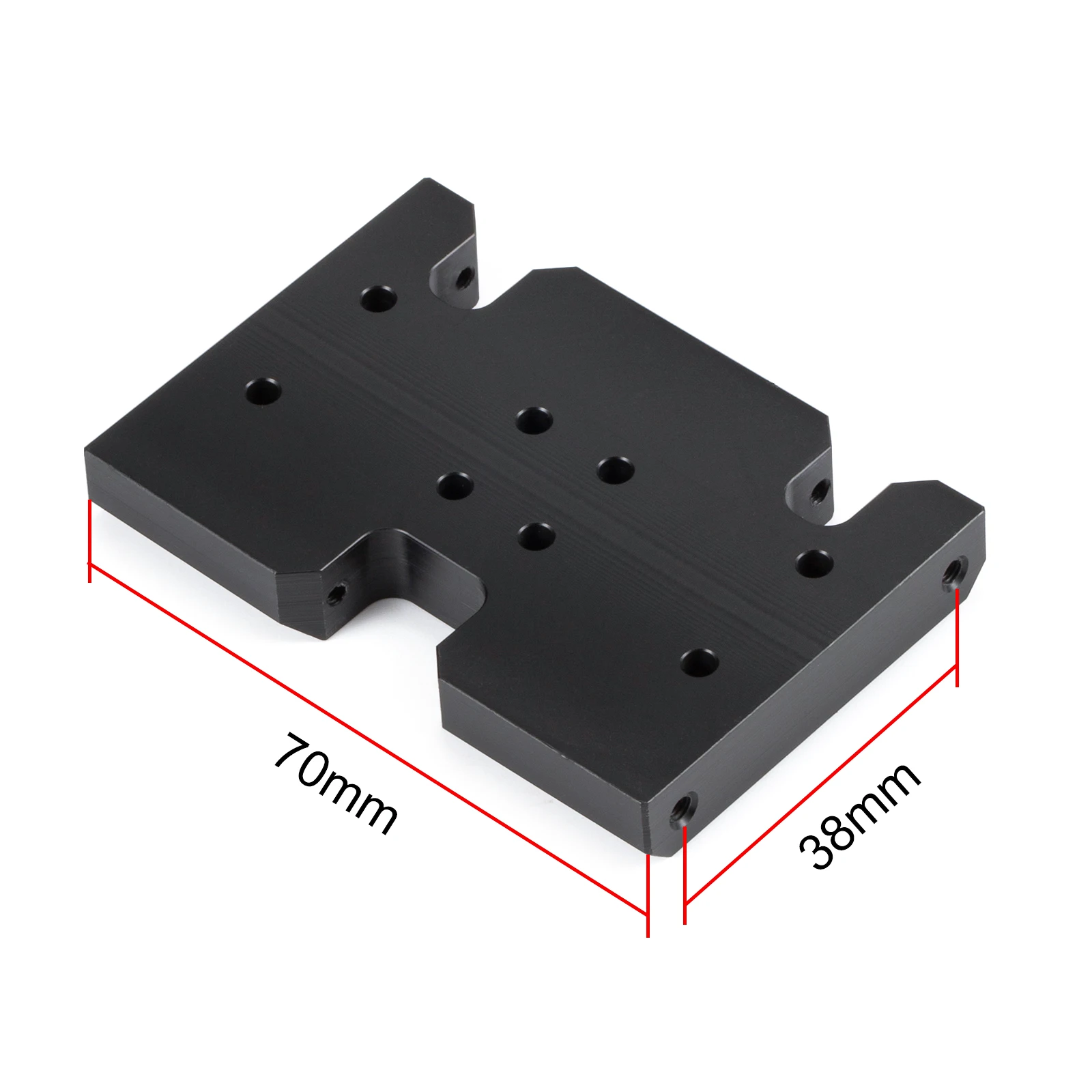

• The width of the skid plate is only 70mm. Transmission mounting holes for the 2.low, axial 3 gear type, and the Element.
• The 2.low transmission, on the 70mm skid plate, with full size motor is not compatible. Using shims will work with short outrunner motors.
